» 165T( 420 Mesh ) POLYESTER SCREEN PRINTING MESH

165T(420 mesh) polyester silk screen printing mesh are considered as fine mesh count, has high tension and low elongation, with excellent tear resistance and dimensional stability, it is under base for Simulated Process, Suede Ink, it is used for textiles, graphics, CDs, PCB, ceramic, objects, etc printing.

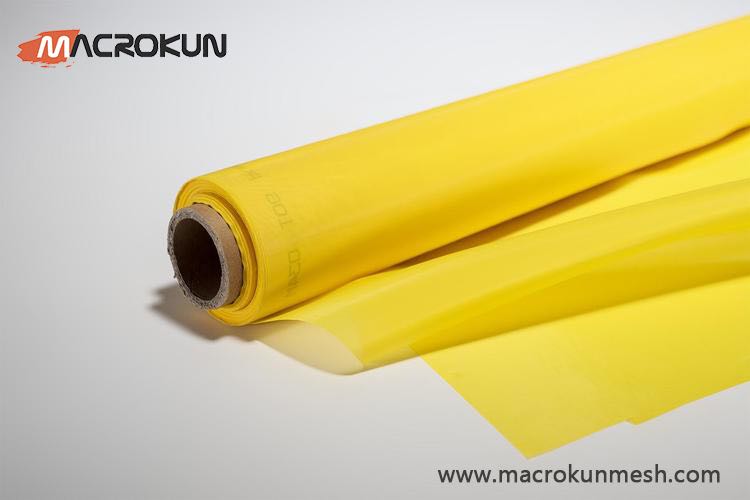

165T(420 mesh) polyester silk screen printing mesh

Product Name 165T(420 mesh) polyester silk screen printing mesh / bolting cloth
Material 100% polyester monofilament
Mesh Count/cm 165T
Mesh Count/inch 420 mesh/inch
Color White, Yellow
Width 127cm, 165cm or customized
Roll length 30-100m or customized
Thread diameter 31 micron
Mesh Opening 24 micron
Thickness 52-58 micron
Weave type Plain weave
Feature High tension, low elongation and halogen-free
Usage Printing on Ceramics, Glass, Textile, Electronics, CD, PCB, Solar cell panel, Advertising
Sample 1 m

Best Features:
* High tension, low elongation.
* Superior stencil adhesion, resulting in less stencil breakdown on press, delivering longer print runs far beyond other conventional treated fabrics.
* Shorter exposure times due to increased stencil adhesion.
* Holds finer detail with no compromise in stencil durability.
