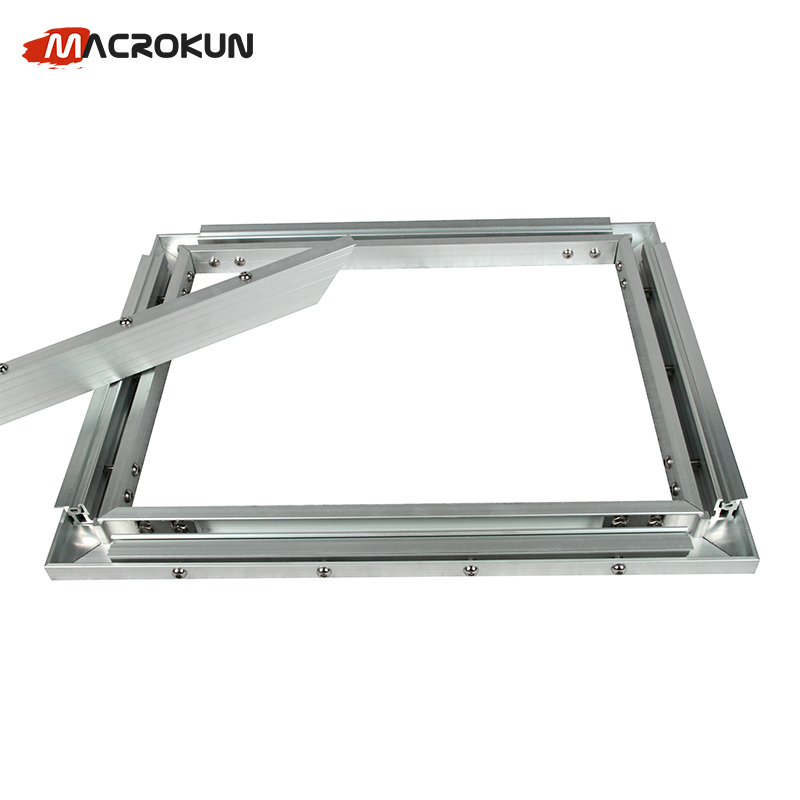

» 2015 Free Dismantle and Combination Self Tensioning Universal Screen Printing Frame

2015 type self-tensioning screen frame is the latest invention of our company. the new screen printing frame to compare the old one, new self-stretching frame much simple and does not need glues. Any combination can be into any size of screen frame according to needs and repeated use, product of screen printing would be installed repeatedly, assemble stretching of an arbitrary size of screen frame only needs 3-5 minutes, after tensioning-frame stretch the frame just like the traditional metal or wooden frame you also can put emulsion print and printing.

with electric screwdriver install more faster and more efficient), stretched screen frame and ordinary frame without any difference.

1. Directly stretching mesh- -substitute screen stretcher,without coating adhesive;
2. Free combination- -according to needs, combine the screen frame at any size;
3. Repeat use- -the screen mesh can repeatedly install on the frames for repeat use;
4. Fast stretch mesh- after skilled with the technology, it only takes 3-5 minutes to stretch a frame with any size,the stretched frames is the same with traditional metal or wooden screen frame, also can be used coating emulsion, exposure, printing…
5. To install this screen frame, it only takes two pcs of socket head wrench(you can also choose electric socket head wrench, the installation will be faster, get higher efficiency)
6. There is no difference between this stretched screen with the normal screen. This screen use special made aluminum alloy material, the frame strip size 43* 25mm (1.7*0.98inch). Special structure design, the strength was much higher than the normal type aluminum alloy profile materials; weight is 1.1kg/meter;The weight of inner diameter 40*50cm(16*20inch) screen is 2.88kg, perfectly meet the requirement of screen printing.

1.Select different size frame materials according to need.

2.Insert the 4 pcs corner connector to the groove on the stripe to connect them.

3. Fix he screen frame by socket head wrench.
4. L oose the outside screws of stretching strip, pull the press mesh aluminum stripto the

outermost side of frame.

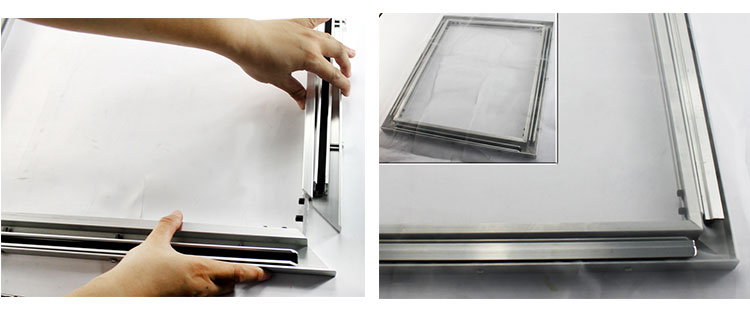

5. Put the mesh evenly on the screen frame, buckle the mesh to the groove by aluminum

strip,simultaneously buckle in from both sides, try to tensioning the mesh as much as possible.

6.Pull the tension point by socket head wrench uniformly, stretch the mesh to proper tension.

Coating the emulsion , exposing the plate:It is the same with the traditional cleaning, drying,

coating the emulsion  (film) .

Print and clean the screen frame: it is exactly the same With the traditional screen printing

and screen cleaning operation process.

Take off the mesh: after cleaning up the used screen frame and dried ,loose the outer screws ,open the aluminium strip,and take out the mesh from the groove , the mesh can be take out completely .

Keep the mesh :as for the removed mesh has not  dry, keep it after natural drying or drying .

Install the mesh with design, operation method is the same with stretching mesh
