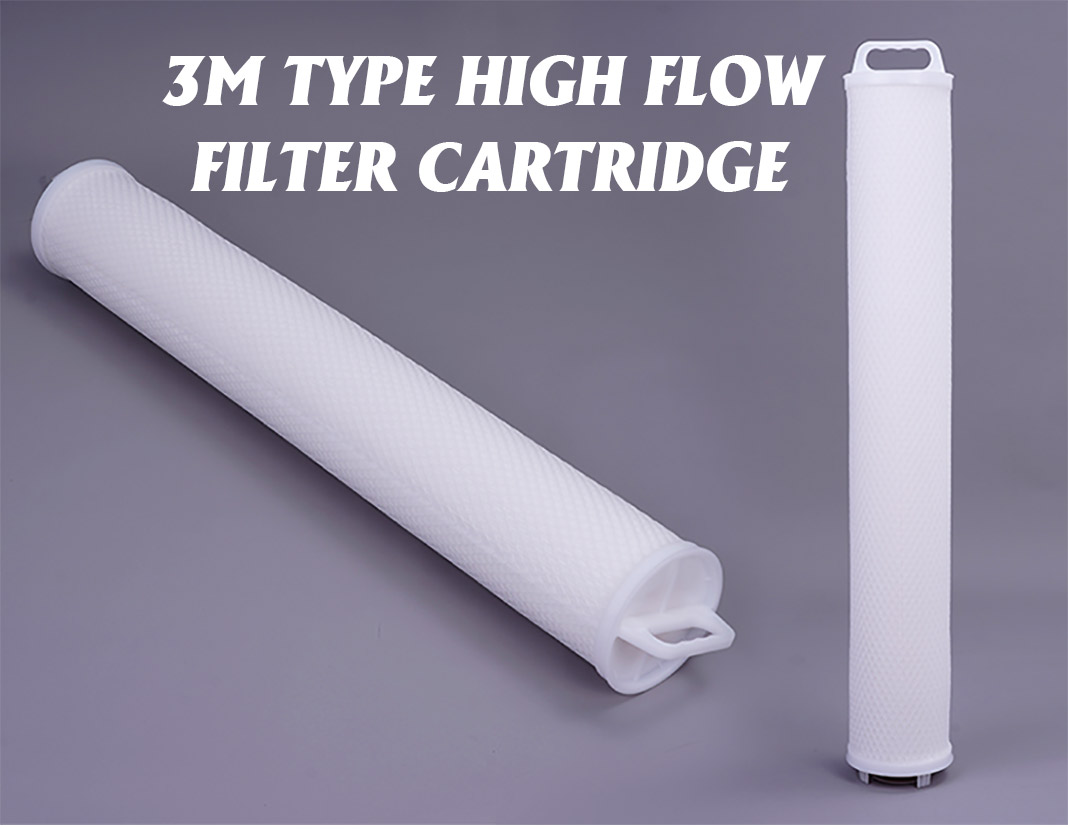

» 3M type high flow filter cartridge

High flow filter cartridge adopts imported high performance PP non-woven fabrics to optimize its filtration performance and fluid quality to ensure our customers’ satisfaction. The filter cartridge adopts horizontal pleats design to make the filter cartridge has a large effective filter area. Meltdown PP microfibers have strictly controlled fiber diameters to ensure its absolute filter rating. Pleating technology ensures the filter material is pleated in a more uniform way. The evenly distributed liquids in the whole filter material makes the full use of the filter area. In this design, we can ensure the filtration effect in a more compact and smaller space and its large inner diameter allows the flow of single cartridge up to 1900 liters per minute.

Product name:	3M type high flow filter cartridge
Support/Diversion Layer:	PP
Shell/Center Rod/End Cap:	PP
Sealing material:	MVQ, EPDM, FPM,Teflon-coated FPM
Length:	20”、40″、60″
Outer diameter:	φ165 mm
Maximum operating temperature:	80°C
Maximum working pressure difference:	3 bar@ 21°C

Features:

1.Gradient pore size structure

2.When filtering water, the flow of a single cartridge is up to 110 m3/h.

3.The size of the filter system can be reduced by 50%.

4.Filter cartridges are available in 20″, 40″ and 60″ in length.

5.The inside to outside flow direction ensures all impurities are trapped inside the filter cartridge.



1.Compared with common filter cartridge, the combination design of surface filtration and depth filtration can greatly reduce the number of filter cartridges and the size of supporting housings.

2.The pleated design offers an enlarged filter area, which makes its pressure drop significantly lower than that of common cartridges;

3.Large diameter design increases its dirt holding capacity, extends its service life and reduces the production costs.

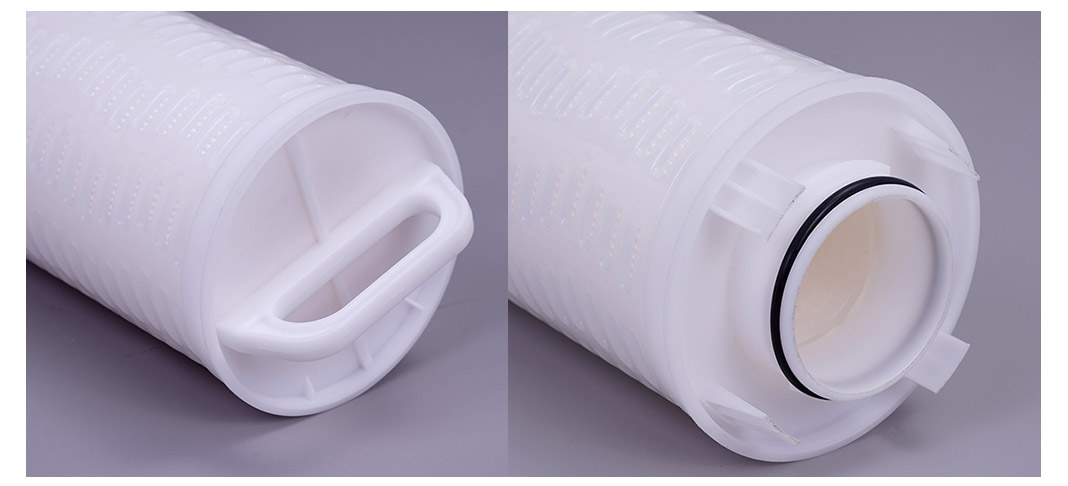

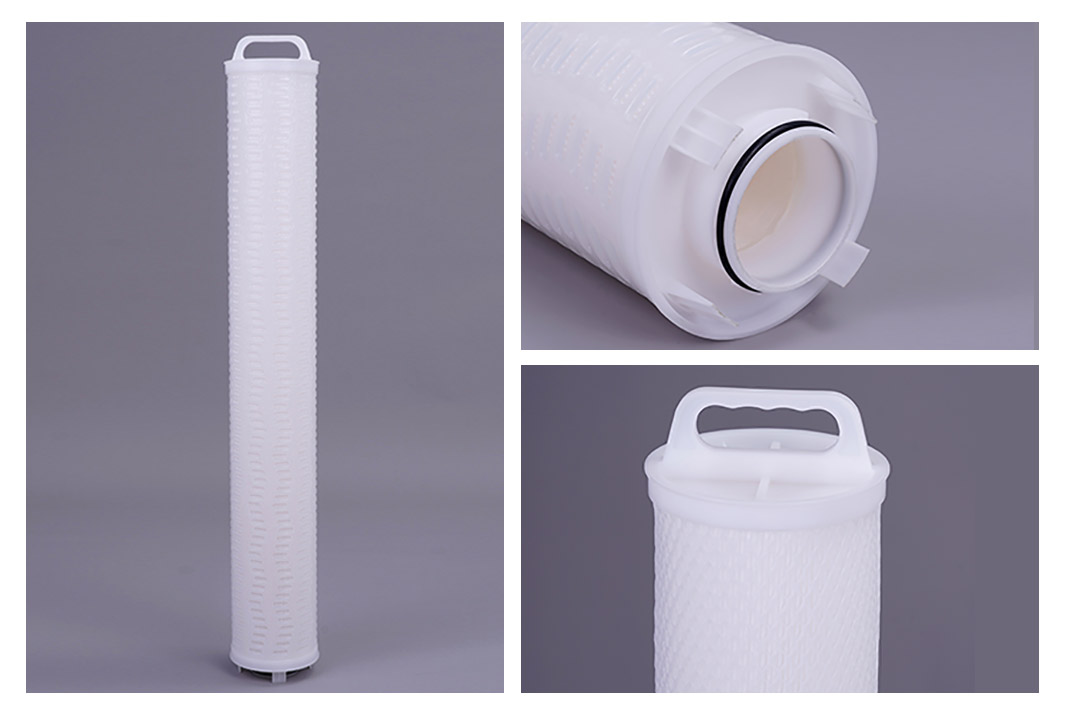

4.Handle design greatly reduces the time for cartridge replacement and makes the cartridge replacement easy and portable.

5.The connection part adopts object-oriented design to facilitate the installation and removal of filter cartridges.

6.Integrated PP design and thermal bond treatment effectively prevents secondary pollution.

7.Skeleton is provided to enhance the pressure resistant capacity of filter cartridges during use.



Applications:

1.Condensate polishing

2.Chilled water, saline water, finished product electronic applications

3.Boiler supply water treatment

4.Resin capture in petrochemical applications

5.Oil well reinjection water, produced, completion fuid, amine fluid desulfurization and final product chemical

applications

6.RO prefiltration, wastewater reuse, condensate water, nozzle protection, food & beverage, pharmaceuticals and other applications
