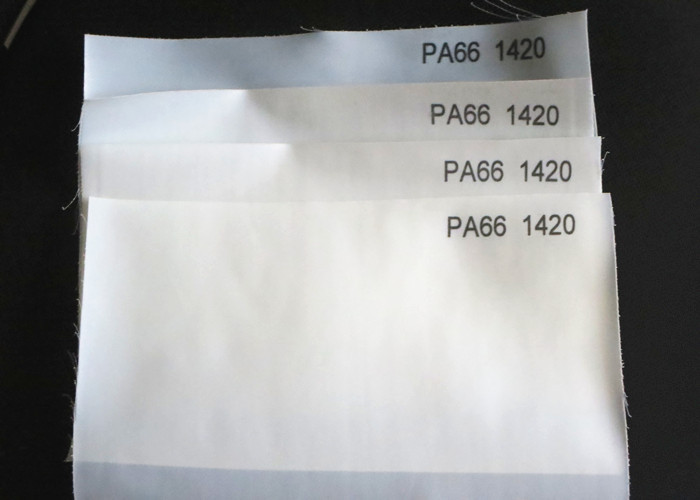

5 micron polyamide nylon filter cloth Quick detail:
plate and frame filter cloth / Nylon filter cloth
Nylon filter fabric
good filtration effect
long life time
thick cake
5 micron polyamide nylon filter cloth Features:
Nylon filter cloth features the greatest abrasion resistance among the other three frequently used filter fabrics.
Nylon filter cloth features the greatest abrasion resistance among the other three frequently used filter fabrics including polypropylene, polyester and cotton. It is often found in filtration applications of abrasive dusts and wet abrasive solids where abrasion resistance plays an important factor.
To meet various applications, Nylon filter cloths including spun and multifilament can be woven into plain, leno and stain patterns for fine particle filtration.
Embedded nylon filter cloth preventing capillary leakage
Polyamide filter fabric for dust collection bag for chemical Specifications:
| Product name | Polyamide filter fabric for dust collection bag for chemical |
| Model No. | PA4 |
| Material | Polyamide(Nylon) |
| Color | Customized color |
| Size | Customized size |
| Weight | 400 gsm |
| Thickness | 0.5-1.0mm |
| Certificate | ISO9001 |
| Technology | Single weave |
| Weave | Plain |
| Filter cloth type | Monofilament |
| Type | Liquid-solid filter/ Dust removal/ Dry filter |
| Application | Sludge dewatering/ Chemical/ Dust |
| Characteristic | Anti-alkali , Low temperature resistance |
| Running temperature(℃) | 120 |
| Instant temperature(℃) | 135 |
Woven nylon 6 industrail filter fabric
| Item Name | Density
warp/weft (10cm) |
Weight
g/m2 |
Airpermeability
(10-3m3/m2.s) |
material | Fabric texture |
| 3110 | 700/196 | 405 | 210 | Monofilament | stain |
| 6235 | 354/161 | 400 | 210 | Monofilament | stain |
| 2475 | 945/295 | 600 | 85 | Monofilament | Changes in organization |
| 856 | 290/126 | 446 | 80 | filament | twill |
| 663 | 192/140 | 265 | 30 | filament | plain |
Polyamide filter fabric for dust collection bag for chemical Application:
Chemical:
Catalyst, cobalt carbonate, zinc oxide, zirconium carbonate, activated carbon, cobalt carbonate, borate, dyes and intermediates, iron oxide, nickle, salt, aluminum oxide, titanium dioxide, additives, glycerol, pesticides, white carbon black, zinc, calcium carbonate, etc.
Mining:
Red mud, tailings gold, potash fertilizer, vanadium ore, the end of coal, clean coal, clay, Kaolin clay, etc.
Metallurgical:
Gold, molybdenum, lead, vanadium, nickel, zinc, copper, tungsten, carbide slag, etc.
Food:
Fruite juice, suger, starch, sweetener, beer, etc.
Environmental protection:
Sewage treatment, slude dewatering, flue gas desulphurization, salt mud, fly ash, etc.
