» 6 color 6 station screen printing machine

* Manual presses are built for smaller production.

* If you’ll be working with limited space, manuals have smaller footprints than most automatic screen printing machines.

*, Unlike automatic presses, manuals don’t need air supplies or electricity to operate, saving you space and money.

Product Code	008661

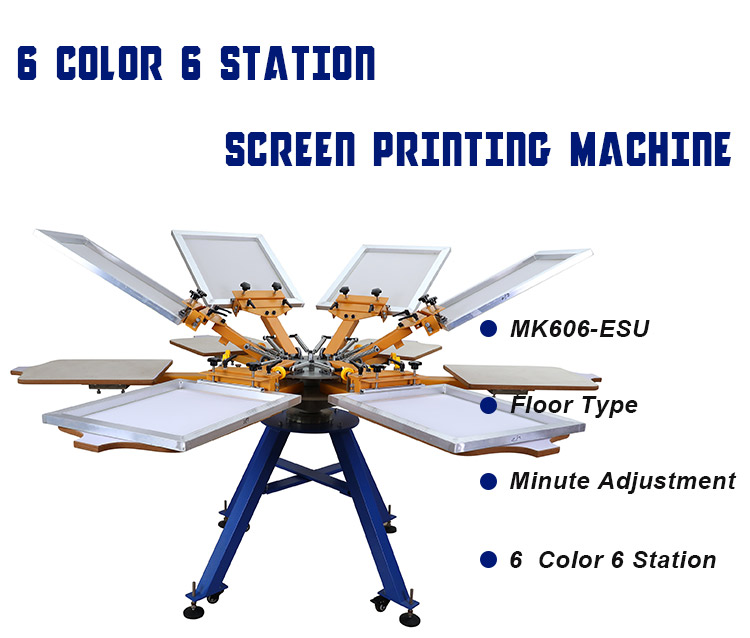

Product Name	MK606-ESU 6 color 6 stations screen printer
HS code	8443192290
Product Color	blue
Pallet Size	450 x 610mm
Max frame size	55*70cm
Machine using material	steel plate
Machine surface treatment	Electrostatic spraying
Pallet Materials	HDF (High-Density Fiberboard)
Net weight	165KG
Gross weight	168KG
Packing size	86*73*67cm
Packing volume	0.42m³
Packing material	plywood box

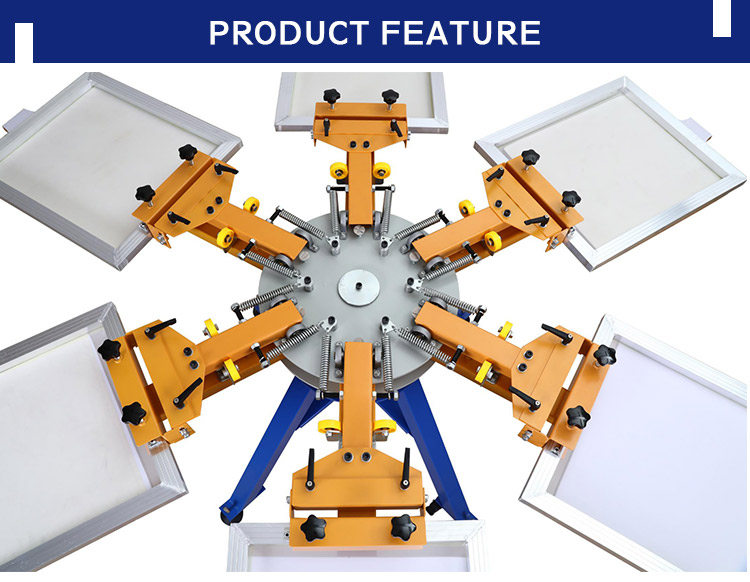

Main Feature:



1. ESU series machine is our company’s basic style with a multi-function screen printing head.



2. It is characterized by accurate positioning, free adjustment, stability of the machine body, and

simple operation. This is designed for T-shirts.

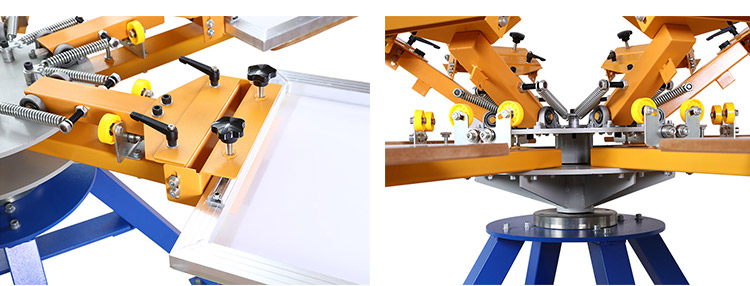

3. Loose the top two screw handles to adjust the screen clamp, and move the clamp from right to

left, back and front, up and down, and angles; there is no need to lose the screen directly.



4. Its central bearing-type rotation design can freely rotate the screen plates and table.



5. Alum table and HDF table are available for choice, new style base is more strong and stable.



6. Double rotary type, screen, and table can rotate independently, strong base with caster to

move freely.



7. We also can supply the different sizes of screen printing machines according to customer’s

requirement.

Installation and Adjustment:



1. After opening the box, check whether the rotating machine is broken or not, and whether the accessories are all in readiness or not.



2. Use the equipped bolts to fix the under-support arms onto the underlaid rotating table according to mark. Do a little fastening in case to adjust later.



3. Put the upper support arm on the positioning blocks of the under-support arm one by one. The

upper arms have been adjusted already before selling, and they cannot be loosened. Use the 2

bearings on the underarm to fasten tightly.



4. Put up all the upper arms and rotate them by 60°. Then put down all the upper arms one by one, and make sure all of them would fall down in the middle of the positioning blocks



5. Repeat rotating like this by 360°. Properly adjust the gradient of underarms, to make sure all

upper arms smoothly locate into the positioning blocks of the underarms. At the moment, fasten

all the bolts of the underarms. Now the adjusting process is finished.



6. Use the small screws to fasten the fixed frame of the bedplates on the bottom.



7. Installing the bedplate is fastened in the working position of the underarms. Fasten the net frame on the clamp. When putting down the screen plate, it can match the area of the bedplate.



8. According to the overprinting requirement of the pattern, you can adjust fine tuning handle, to

make the printing accurate during the work.

This manual 6-color 6-station screen printing machine is widely used in the textile/apparel

screen printing industry, such as overprinting T-shirts, garments, backpacks, leather, fabrics,

towels, and many other items. With the far-infrared dryer, it can improve the effect of

overprinting. It has the advantages of accurate positioning, space-saving, labor-saving, etc.

It is especially suitable for T-shirt shops, small enterprises, and individual printing shops.

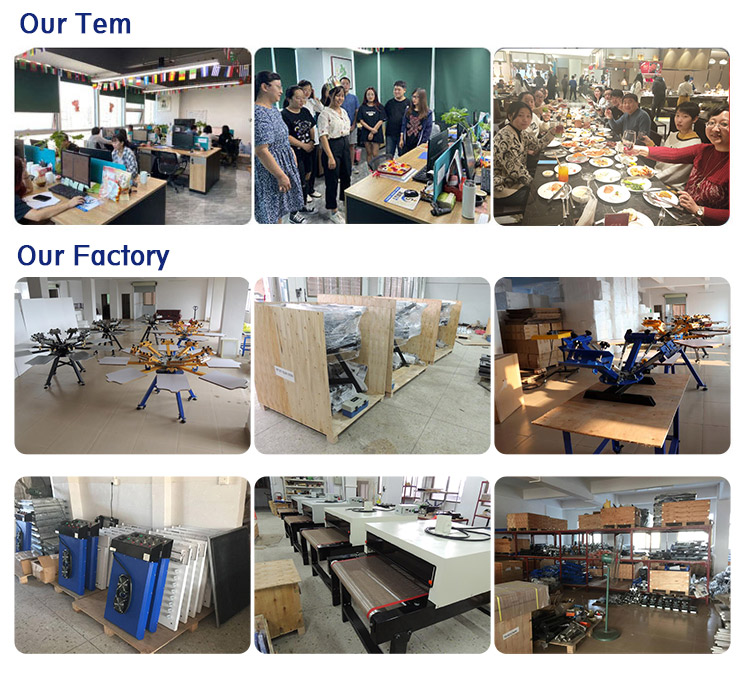

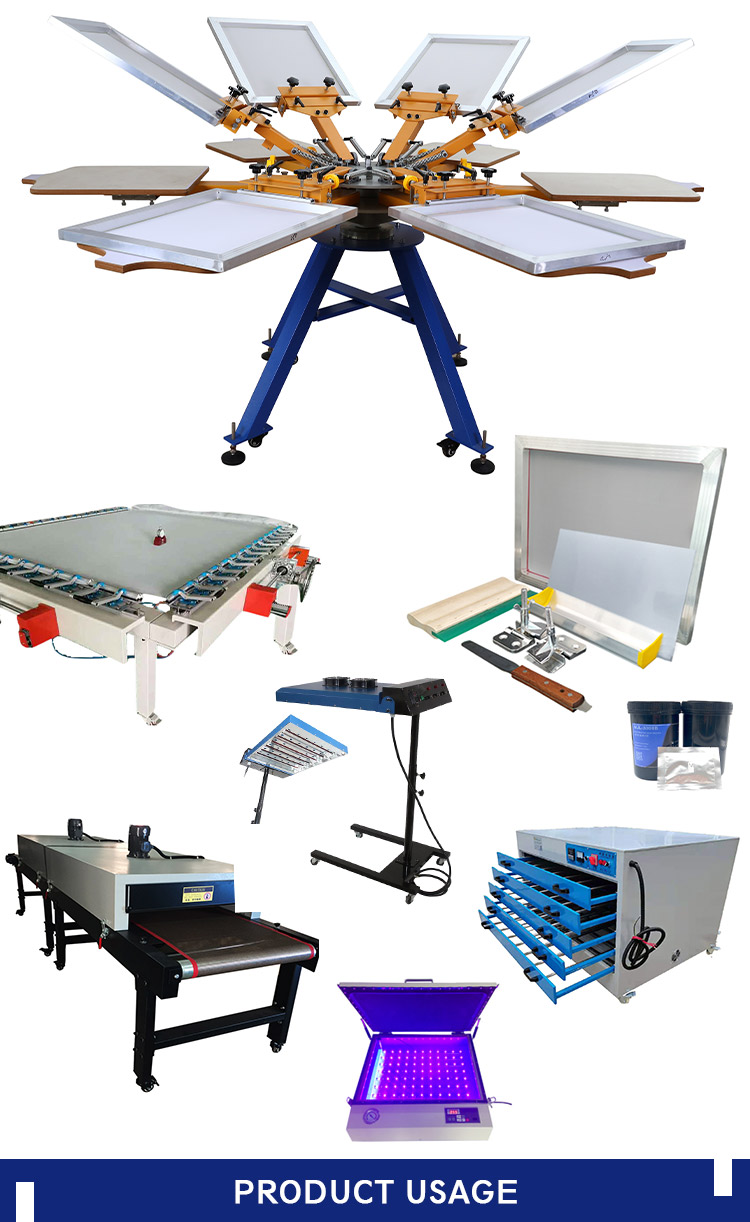

Macrokun is one of the screen printing suppliers in China. We mainly produce screen printing mesh, aluminum frames, squeegees, printing machines, and accessories.
Our Advantage:
1. Can accept any quantity and specifications customized.
2. Delivery fast, work with DHL FEDEX UPS etc to ensure timeliness.
3. Perfect quality test system to ensure quality of each product.
4. Good after-sale service system to properly handle every problem encountered by customers, currently goods have been sold to Southeast Asia, Eastern Europe, South America, etc more than 70 countries and regions.

1. By express, like DHL, UPS, FEDEX, and EXC, it is to door, usually 5-1Odays to arrive.
2. By air to the airport, usually, 5-10 days to arrive.
3. By sea to sea port, usually, 15-30 days to arrive.

If your delivery time is very urgent, we suggest you choose by express or by air.

If it is not very urgent, we will suggest you choose by sea, it is very cheap.
