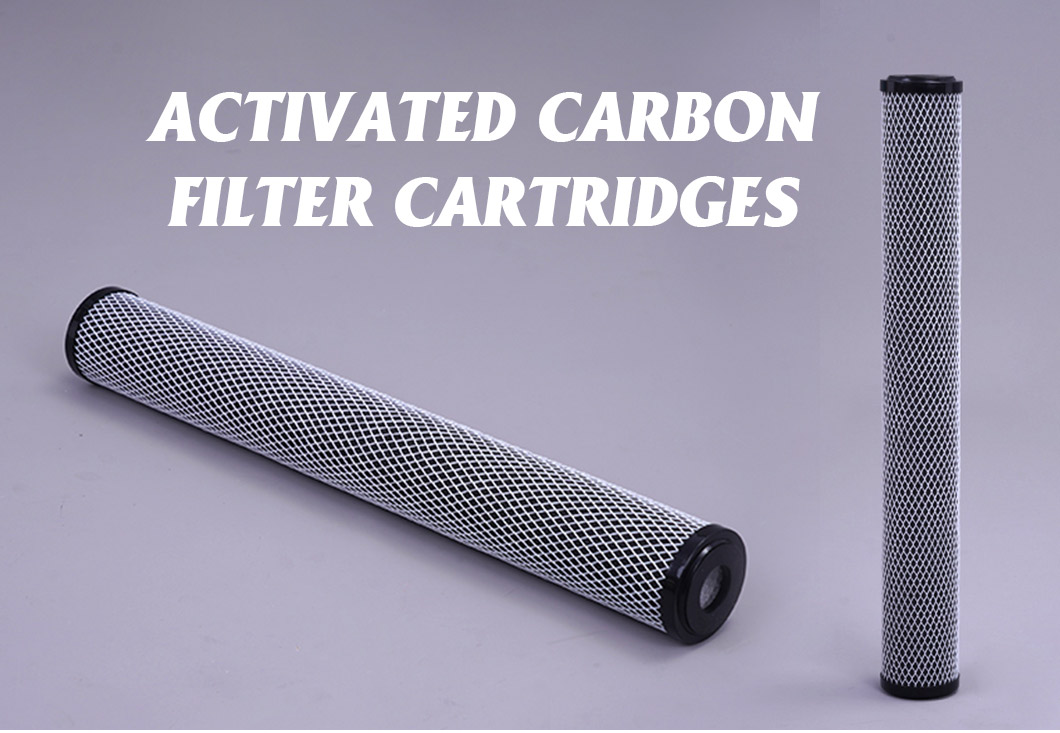

>> Activated Carbon Filter Cartridges
Carbon Impregnated Cellulose Filter Cartridges are constructed with wrap carbon impregnatedcellulose and activated carbon fine for good absorption, including considerably high carboncontent. The polyester fiber external netting provides additional strength and high dirt loadingcapacity. The inner fiber felt of carbon impregnated cartridges keep the carbon particles andpollutants away from the filtered liquid, while the central core enhances the ability to withstandpressure. Carbon impregnated cellulose filters possess especially splendid functions of finesediment removal, chlorine deduction and organic chemical removal, therefore, providing highfiltration efficiency in water processing.
| Product name: | Activated Carbon Filter Cartridges |
| Filter media: | Carbon Impregnated Cellulose |
| Length: | 5″, 9.75″, 9.8″, 10″, 20″, 30″ According to customers requirements |
| Inside diameter: | 28mm Special ID can be customized |
| Outside diameter: | 2.5″(63mm) Special OD is accepted |
| Filtration rating: | 5μm, 10μm |
| End cap: | Plastisol |
| Center core: | Polypropylene |
| Gasket/O-ring: | Silicone, Buna-N, EPDM |
| Netting: | Polyethylene |
| Maximum operating temperature: | 52*C(1259F) |
| Max. differential pressure: | 4.5bar at 259C (65 psi at 77°F) |
| Recommended change out differential pressure: |
2.1 bar(31 psi) |
Strong outer netting for surfaceintegrity and more durable. Inner layer is surrounded by nonwoven fabric to assure nocarbon bleed-off.
Vinyl Plastisol molding endcaps provide anpletely sealing to prevent chlorine & dirt leaking out.
The center polypropylene core both increases pressure-bearing capacityand reduces deposits.
Various types of non-standard filter elements can be customized according to different needs of customers.
Features:
1. Carbon impregnated cellulose filters have preminum dirt-holding capacity.
2. Carbon celluslose filters provide depth filteration for fine chemical applications.
3. Carbon impregnated cartridges are manufactured entirely from FDA-compliant materials.
4. Impregnated carbon filters have high chlorine taste & odor and bad taste & odor reduction.
5. Carbon impregnated cartridges process high flow rate & long service life with consistent of performance.
