» Food Grade Polyester Filter Mesh

PRODUCTS INFORMATION

Product Name:Polyester filter mesh

Width: 115 cm, 127 cm, 145 cm, 165 cm, maximum 365 cm,or customized

Roll Length: 30-100m/Roll, Fixed Length,or customized

Type Mesh Count
(Mesh/inch)
Weave Aperture

(um)

Opening(% Thread Diameter
(um)
Weight (g/
08250 20 1 1000 62 250 117
12250 30 2 590 49 250 175
13140 33 3 640 69 140 56
16200 40 4 430 46 200 149
18170 45 5 390 48 170 120
19180 50 6 355 49 180 137
24140 60 7 280 44 140 110
24150 60 8 270 41 150 126
24100 60 9 320 57 100 56
29120 75 10 230 57 100 56
32100 80 11 216 46 100 75
32064 80 12 250 62 64 31
36090 90 13 190 45 90 68
39055 100 14 200 62 55 30
39064 100 15 190 56 64 38
39070 100 16 185 53 70 46
43080 110 17 150 42 80 65
48055 120 18 153 52 55 36
48064 120 19 145 47 64 47
48070 120 20 140 44 70 56
55055 140 21 130 51 55 40
55064 140 22 120 44 64 53
64055 160 23 100 40 55 48
64064 160 24 90 32 64 62
72048 180 25 91 42 48 39
72055 180 26 84 35 55 53
77048 195 27 82 40 48 42
77055 195 28 75 33 55 57
80048 200 29 77 37 48 44
90048 230 30 62 32 48 50
10040 250 31 58 33 40 37
11040 280 32 49 29 40 40
12031 300 33 50 35 31 27
12034 300 34 46 30 34 35
14031 350 35 39 29 31 30
14034 350 36 35 23 34 39
15031 380 37 34 26 31 32
15034 380 38 30 20 34 42
16527 420 39 32 28 27 29
16531 420 40 27 20 31 37
18127 460 41 25 20 27 31
20031 500 1 19 14 31 45
55080 460/120 43     55/80
55100 460/110 44     55/100

Remark:The above datas are theoretic ,please reference the actual datas if there it differs.

Introduction:

Macrokun produces and supplies monofilament polyester filter mesh(low-elongation) with a wide range of mesh counts and significant advantages compared with traditional polyester woven mesh.

High quality and precision with a wide range of from 10 meshes to 460 meshes/inch.

Our polyester monofilament woven screen meshes have excellent tear resistance which permits high fabric tensions to be achieved with virtually any commercially available stretching system. And very good dimensional stability guarantees highly reproducible tension. Precision weaving of dimensionally stable threads produces fabric with predictable and close tolerance counts and mesh opening for consistent registration and sharp resolution.

Polyester Filter Mesh Advantages:

1、Good acid resistance.

2、Temperature resistance.

3、Wear resistance.

4、High tensile strength, Low-elongation.

5、Easy cleaning, good air permeability.

Monofilament mesh is woven from yarn that is extruded from heated polyester into a single strand conventional monofilament. Polyester screen fabric will elongate under tension: the higher the tension level, the more the thread can stretch. At excessive tension levels, the thread reaches its “plastic deformation” point, and the screen will no longer hold tension.

[Our Advantage]

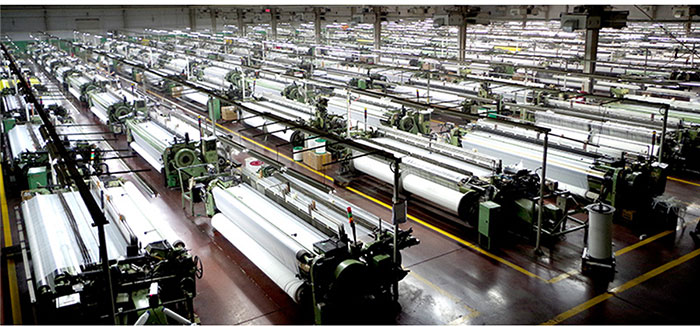

  1. 126 sets P7100 and P7150 Sulzer weaving looms  from Switzerland, as well as Germany-made

intellectual electronic warping machine can ensure our supply ability to be 5000 meters per day.

  1. For normal mesh count mesh and other products, usually we have stocks, goods can be shiped

out within 15 days.

  1. Our production process fully based on the high computer technology, it is accepted as the only

company capable of having TSE ( Chinese Standard Institution ) and ISO 9001:2008. 90% of our silk screen printing mesh exported to Southeast Asia, North America, Europe and other parts in the world. We have good reputation in the world with high quality and competitive price.

Direct factory customization, reduce the link, you can enjoy the factory price; factory large-scale

procurement of raw materials, can control the cost very well.

[Packing]

  1. Paper tube inside, plastic bag outside, then packed in cartons.
  2. Folding the mesh into plastic bag, then packed in cartons.

[Shipping]

  1. Samples orders usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS and so on)
  2. Small quantity orders usually within 3-7 days shipped by air or by sea.
  3. Large quantity orders usually within 7-15 days shipped by sea.
  4. The main export port: XINGANG, BEIJING , SHANGHAI, QIANGDAO , NINGBO and so on.
