| Product name: | screen printing squeegee | Brand: | MACROKUN |
| Material: | Polyurethane | Length: | 3660mm/roll,4000mm/roll, customized |
| Size: | 25*5mm, 35*7mm, 50*9mm | Color: | red, green, blue, white,
etc, customized |
| Strip hardness: | 55,60,65,70,75,80,85,90,95A | Blade shape: | flat, sharp, oblique, blunt |
| Product use: | Make glue or ink flow through the screen to contact the substrate material, ensure that the screen is suitable for the surface of the substrate, and can remove excess glue and ink on the screen |
||
| Storage method: | After using it up or not using it for a long time, the blade should be cleaned with water or net water. Wash it clean and keep it in a cool place to extend the life of the tape | ||

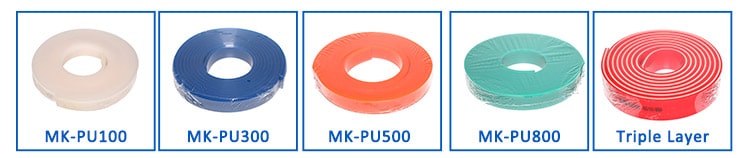

MK-PU100
Usage: Widely used in t-shirts, textile printing, etc.
Feature: Resistant to water-based inks and common solvents.
MK-PU300
Standard References : Soft 65sh A red / Medium 75shA green
Usage: Widely used in UV inks, CD/DVD, disc, glass, ceramic, package, PCB printing, etc.
Feature: It is an all-purpose polyurethane blade with good combined resistance to chemicals and abrasion. It was developed to withstand various applications in screen printing.
MK-PU500
Standard References : Soft 65sh A red / Medium 75shA green
Usage: Widely used in PCB, Solar panels, touch screens, glass, decal paper printing, etc.
Feature: It is a special polyurethane blade with excellent combined resistance to chemicals and abrasion. It was developed to withstand the toughest applications in screen printing and has a long shelf life in most environments, sharpens well.
MK-PU800
Storage of squeegee: The squeegee needs to be put in a dry and cool warehouse for long time storage. Newly purchased squeegees, you’d better rotate to use it , after daily use, just clean the solvent on the squeegee surface, and keep the squeegee edge upward.
Usage: Widely used in UV inks, glass, ceramic, PCB and electronics printing, etc.
Feature: Raw material from Taiwan, super solvent resistant, abrasion resistant, longer service life,anti-static.

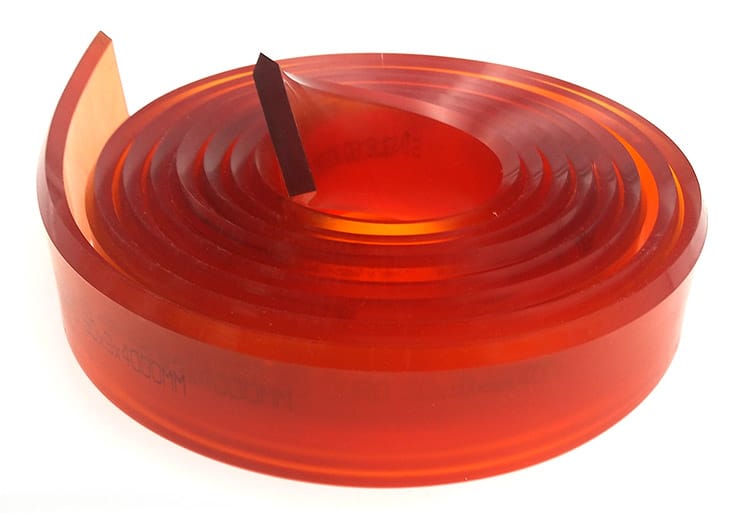

Triple Layer
Triple soft 65/90/65 shore A Red/White/Red Advantages.
Good resistance to chemicals & abrasion.
Resistance to abrasion.
Sharpens easy.
Color-coded for easy identification.
High environment stability.
Individual package and batch Applications
Standard Profiles
E1:Straight Square Edge
E2:Single Bevel+Flat tip
E3:Single Bevel
E4:Double Bevel+Flat tip
E5:Double Bevel (V shape)
E6:Bull Nose (round top)
E7:H shape
E8:Triple layer
E9:Double layer
Product Features:
1. High abrasion and tear resistance resulting in better elasticity.
2. Excellent resistance and minimum swell to a wide range of pastes, inks, and solvents.
3. Precisely finished edge.
4. Hyper solvent resistance.
5. Has good abrasion resistance, and can be repaired with a scraper.
Transport:
1. Samples orders are usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS, and
so on).
2. Small quantity orders usually within 3-7 days shipping by air or by sea.
3. Large quantity orders usually within 7-15 days shipped by sea.
The main export port: is SHENZHEN.
