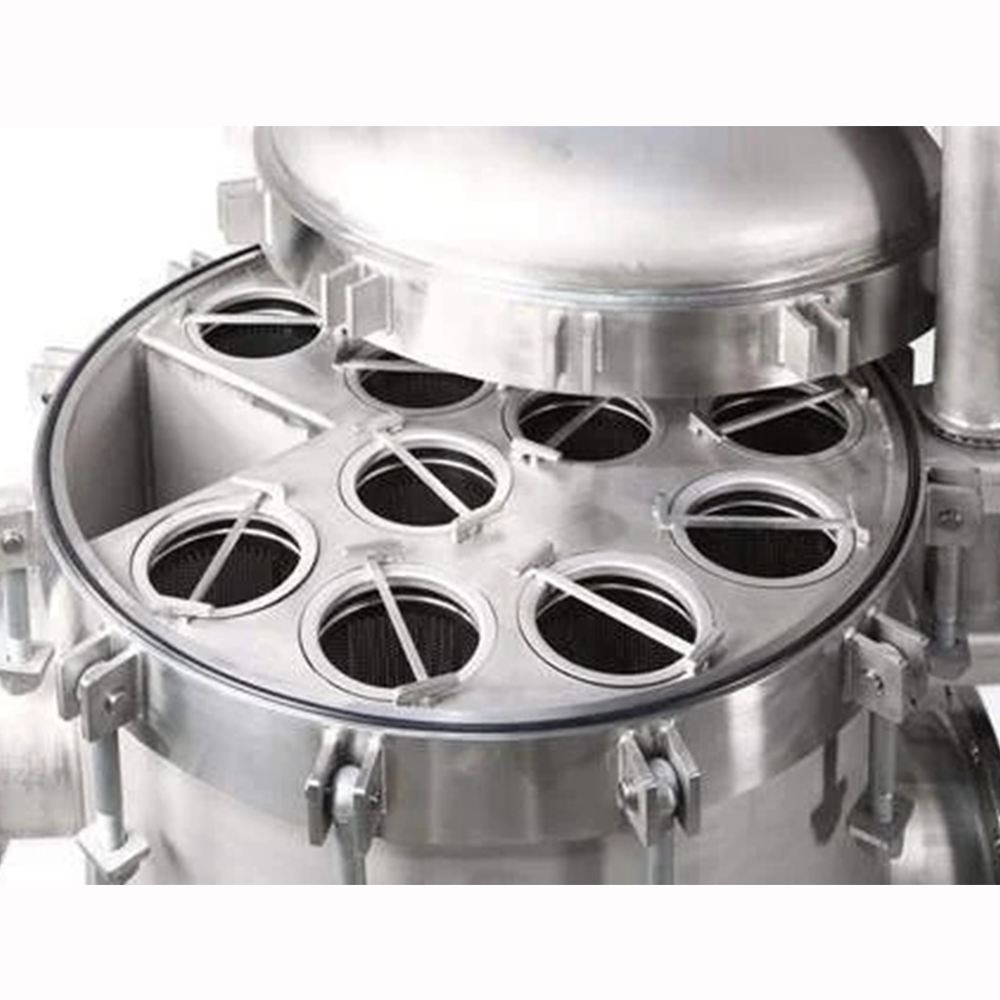

Multi bags filters
1,Material:SUS304,SUS316L
2,Custom design services
3,Filtering accuracy:5-200 um
4,Easy to operate
Application
· Automotive
· Food and Beverage
· Chemical Processing
· Paints, Inks, Resins and Coatings
· Electronics
· Petrochemicals
· Municipal Water Treatment
· Industrial Water Treatment
· Pulp and Paper
· Pharmaceutical
· Lubricants, Metalworking Fluids
· Solvents
| Customized products and OEM Service are available | |
| body | stainless steel 304 |
| surface treatment | sand blasting, polishing |
| body size | Φ550X1575mm |
| filtration precision | 1-800μm |
| filtration area | 1.84m² |
| flow rate | 120m³/h |
| working temperature | 40°C 100°F |
| max pressure | 10bar 150psi |
| O-ring | Buna N |
| bag material | PE |
| inlet/outlet connections | flange |
| closure type | swing bolt flange |
