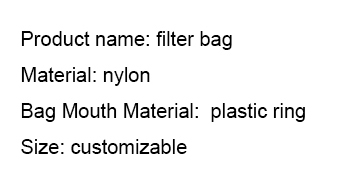

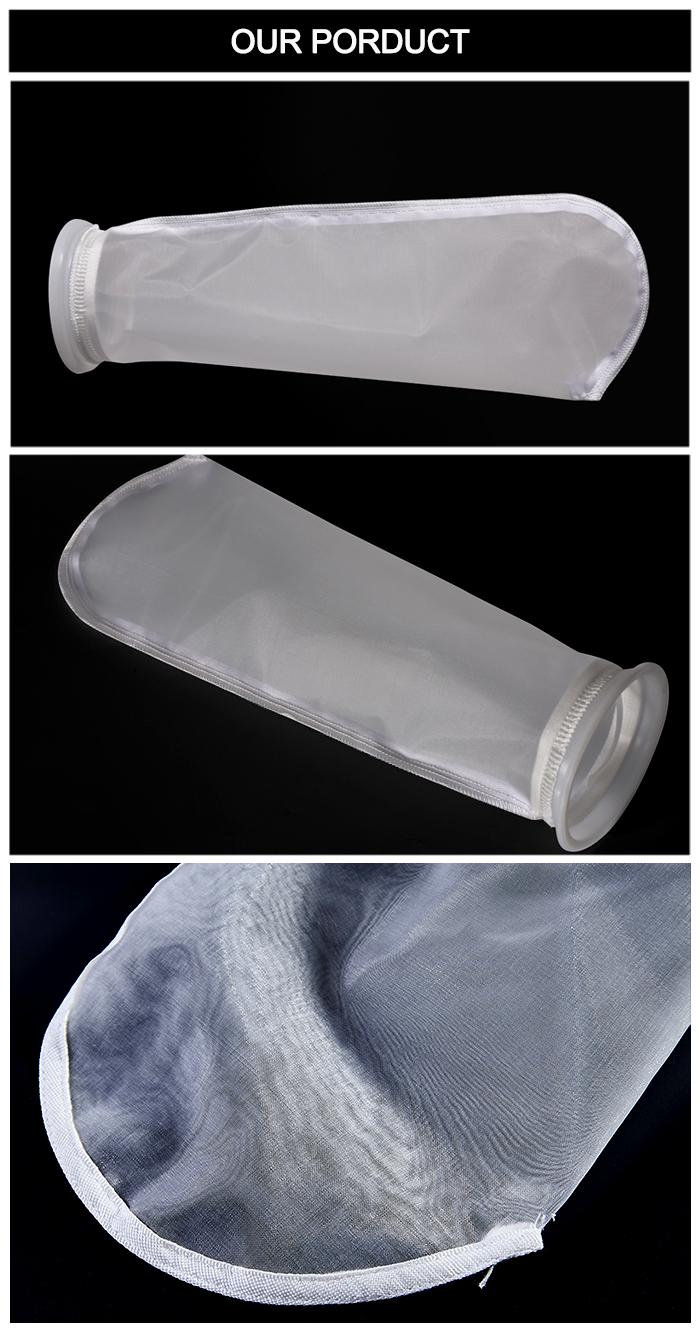

PRODUCT INFORMATION
| Material: | Nylon Monofilament |

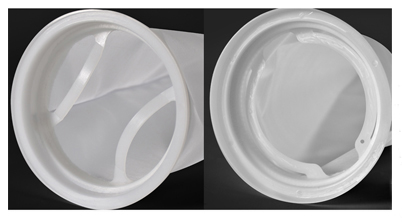

| Ring: | plastic, stainless steel |
| Filtration Precision: | 10, 25, 50,100,150, 200,400,500,600,800 µm |
| Type: | various specifications |

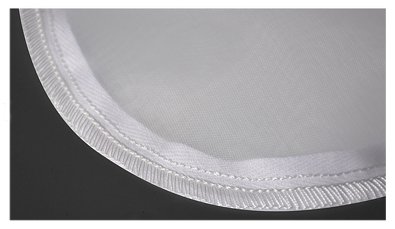

| Airtight method: | heat fusion, reverse sewing |
| Effective filtration area: | various specifications |
| Others: | special requirement of diameter and can be customized |
The size of the filter bag
| No. | Filtration area(m³) | Volume(L) | Diameter | Length | Max Water Flow(L/ hr) |
| P1S | 0.25 | 8.0 | 7inch(180mm) | 17inch(450mm) | 20 |
| P2S | 0.50 | 17.0 | 7inch(180mm) | 32inch(810mm) | 40 |
| P3S | 0.09 | 1.3 | 4inch(100mm) | 9inch(230mm) | 6 |
| P4S | 0.16 | 2.5 | 4inch(100mm) | 15inch(380mm) | 12 |
Note: Customized filter bags can be provided
INDUSTRY APPLICATION
WORKSHOP
We are engaged in offering our clients a specialized range of woven
mesh fabrics that find extensive application as screens in the printing
industry and as filters in healthcare, food & beverages, and milling industries.
These woven mesh fabrics are supplied under the brand names of
“MACROKUN” is offered to our clients in standard and customized specifications. We are also offering our clients screen printing services that are appreciated by our clients for reliability and accuracy.
