» Microporous Pleated Cartridge Filter

Note:Before opening the filter, please exhaust and release the pressure.

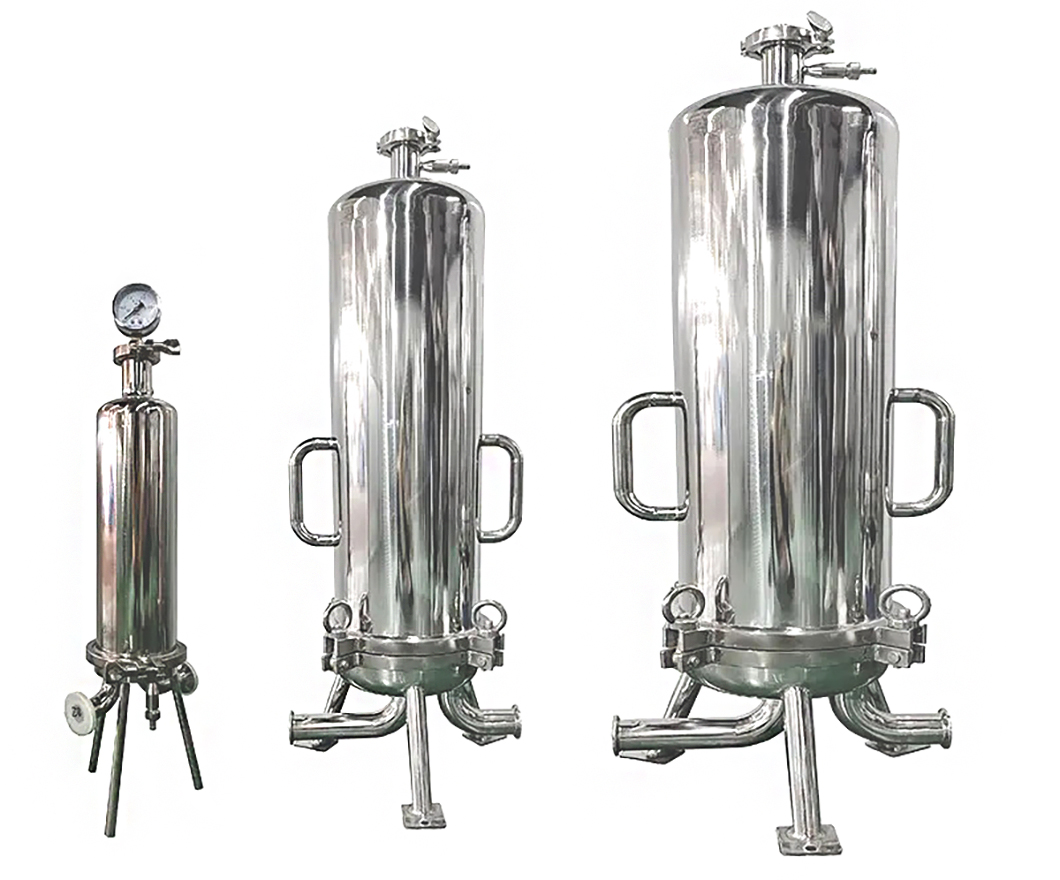

Advantages of stainless steel cartridge filter （beer、wine filtration）:

Food grade stainless steel liquid filter housing pp filter core oil filter housing.

can be applied for most particles so it is broadly for precision filter and sterilization.

◆the filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core

◆the length of folding filter core is 10”,20”,30”,40”

◆the material of the filter core is PP,PTFE,nylon,SS304

◆the diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,

and it is selective as hydrophilic (suitable for gas) and hydrophilic (suitable for liquid) according to your requirement.Food grade stainless steel liquid filter housing pp filter core oil filter housing.



Model	Filter element	Filter element Qty	Connection	Max. Flow (m³/h)	Working pressure(MPa)
INCE-10*1	10”	1	DN20	0.5	0.5-1.6
INCE-20*3	20”	3	DN25	3	0.5-1.6
INCE-20*10	20”	10	DN50	10	0.5-1.6
INCE-20*7	20”	7	DN40	7	0.5-1.6
INCE-30*5	30”	5	DN25	7.5	0.5-1.6
INCE-30*11	30”	11	DN40	16.5	0.5-1.6

>>>DETAILS IMAGES

Housing material: SS304,SS316L, PTFE rubber liner

Number of elements: one-core,3-core,5-core, 7-core,9-coreand above.

Design pressure:0.6 MPa,1.OMPa

Inlet & outlet: DN25-80 flange or quick connection

Surface treatment: bright finish

Filter element: PP pleated filter cartridges, PTFE pleated filter cartridges, PES pleated filter cartridges, titanium filter cartridges, metal sintered filter elements, etc.

Gasket material: MIVQ,EPDM, rubber liner, PTFE-coated rubber liner.



Application:

lt is widely used in pharmaceuticals, chemicals, electronics, beverage, fruit wine, biochemical water treatment,environmental protection and other necessary industrial equipment.
