Packaging Details:Pallet and wooden case or according to your request.
Port:Tianjin port, Shanghai port, Ningbo port or customer’s request
Lead Time :Within 10-15 days after receiving payment
| Product Code | 008008 |

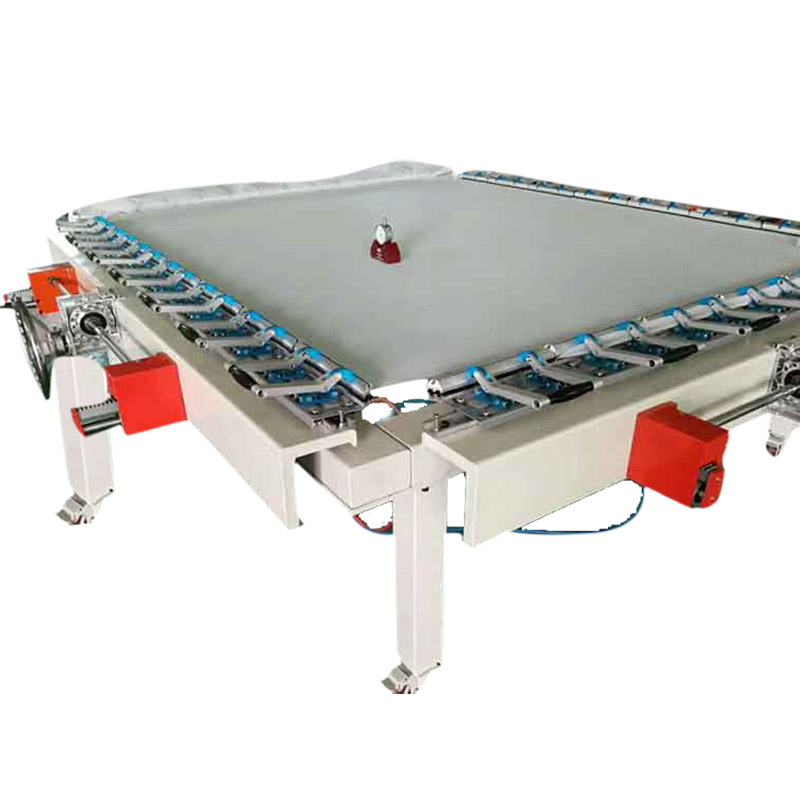

| Product Name | M&K-1215 Dw Double Clamp Worm Screen Stretching Machine |
| HS code | 8442302900 |
| Max working area | 1200x1500mm |
| Maximum tension | 45N |
| Working air pressure | 0.40-7MPa |
| Net weight | 230KG |
| Gross weight | 250KG |
| Packing size | 170*60*60cm |
| Packing volume | 0.61m³ |
| Packing material | Export wooden case |
1.the beam with 1200x80mm special square tube production,tension up to 45 Newton,long-term high tension pull the net beam is not deformed.
Built-in track skateboard,four sides of the beam can be movable type,flexible and convenient to shrink,according to the size of the network frame to adjust the net area,effectively save the yarn.
2.the use of material system pull net chuck,chuck base plate with 45thick steel plate bending welded together,can withstand long-term high tension,
chuck with the import of rubber strips,do not fall of,do not hurt the mesh, not Retreat.
3.the use of Taiwan imported turbine rod gear box drive,the use of gears,racks and linear bearings do travel guide,changing the traditional chain drive,this design is more evenly,higher precision,pull the net more light.
