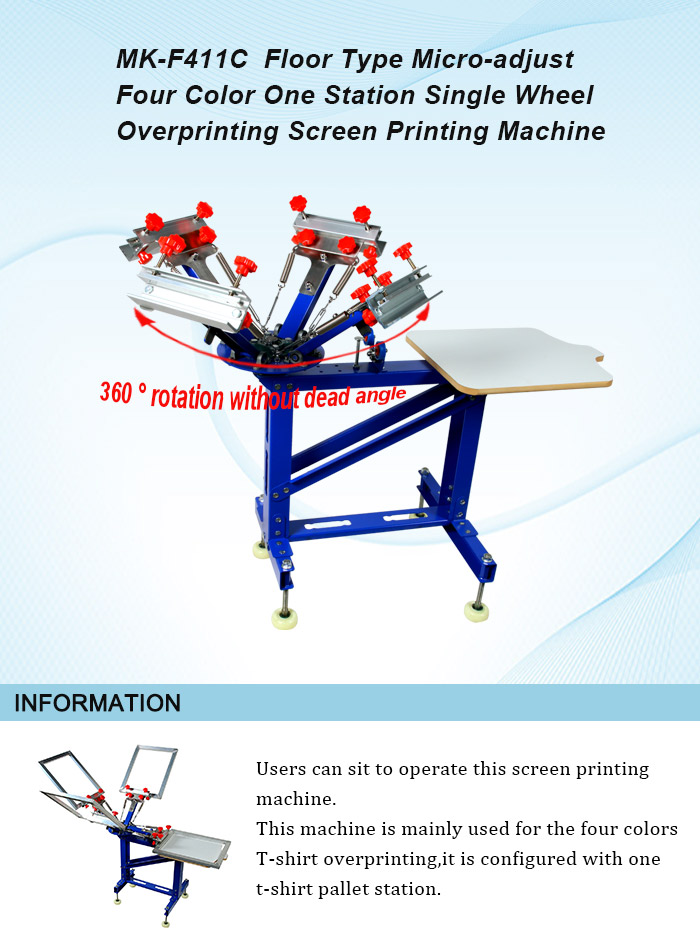

» MK-F411C Floor Type Micro-adjust Four Color One Station Single Wheel Overprinting Screen Printing Machine

Each screen frame fixing device is configured with eight micro adjust knobs. By using the knobs ,user can micro adjust the screen frame from front to back , from left to right .It can make the overprinting more simple and more accurate.
Users can finish all the screen frame’s overprinting positioning at any pallet station,
All the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of every pallet.

Each screen frame’s fixing device is equipped wth precise positioning wheel, when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision .

Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.

Each screen frame’s fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame

The screen frame chuck can be adjusted up to 5cm(2in) according to the height of the substrate.

Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable;

T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.
