» MK-F882E floor type eight color eight station double wheel screen printing machine

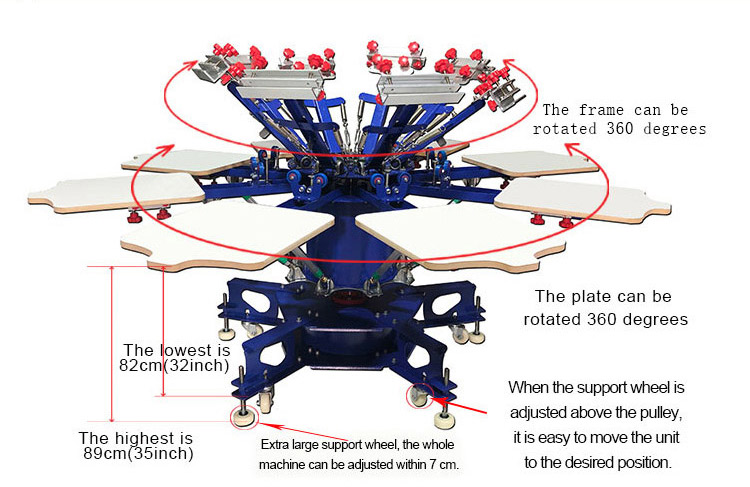

The frame chuck part and the platen part can be rotated 360 degrees freely; the operator can operate in any position or any platen station.



The operator can perform all the corrective benchmarking of all the screens ,at any platen station. All the screen corrections need only one platen to be accurate, and the other plates can reach the standard and can be printed accurately without having to A platen corrects the benchmark.

Product Code	MK-070008
Product Name	MK-F882E floor type eight color eight station double wheel screen printing machine
HS code	8443192290
Product Color	blue
Printing Area	22*18in
Machine using material	steel plate
Machine Welding Technology	Welding mainly
Machine surface treatment	Electrostatic spraying
Important components	Aluminum profile
Attachment material	Stainless steel or zinc plating, nickel plating
Packing quantity	1
Net weight	469lb
Gross weight	584lb
Packing size	39*39*53in
Packing volume	1.3m³
Packing material	Export wooden box



* Manual presses are built for smaller production.

* If you’ll be working with limited space, manuals have smaller footprints than most automatic  screen printing machines.

* Unlike automatic presses, manuals don’t need air supplies or electricity to operate, saving you space and money.

1. Each frame fixing device is equipped with two knobs that can adjust the front, back, left and right of the screen to make the color registration easier,faster and more accurate.



2. Two handles are arranged behind the frame clamp, and the two handle knobs are slightly loosened before the screen is set to the standard, and the front, back, left and right adjustments can be made to the screen, after the color of the standard is over,Tighten the two knobs.



3. Each frame fixing device is equipped with a precise positioning card wheel,and the positioning card iron on the frame arm is placed close to the positioning card wheel. Ensure that the printing is accurate without deviation.Each frame fixing device is equipped with a large card wheel. The frame arm can easily fall into
4. the metal positioning card wheel after touching the large wheel between the two card positions. It also prevents the positioning card iron from directly clliding with the metal positioning card wheel.

   5. Each frame fixing device is equipped with a clamp height positioning adjustable knob for adjusting the height of the chuck after it is lowered.

   6.Each frame fixing device is equipped with a frame lifting height adjustable knob.It is used to adjust the height of the frame after lifting.



   7.The silk screen frame clamp can adjust the spring tension by screws according to the weight of the frame to achieve the most suitable balance pull-out tension.



8. The frame clamp width is 26 (10in) cm; suitable for various frames within the frame outer diameter of 60 (23in) cm and the frame thickness of 5 (2in) cm.

9. The chuck can be adjusted upwards by 3 cm depending on the height of the substrate.

10. Under all the frame clamp knobs, the aluminum alloy pressure plate is used to fix the frame, so that the pressure plate and the frame are closely attached,which is more stable and ensures that the fixed frame is more uniform and does not shift.

11. The platen can be moved back and forth through the bottom connector.

12. The hex support rods with adjustable reinforcement are installed on the lower part of each platen. The user can rotate the hex support rods to strengthen the stability of the platen and adjust the parallelism to ensure the platen is more stable and the printing is more accurate.

13. The T-shirt type platen of this machine is 55 cm (22 in) long,45 cm (18 in) wide and 1.8 cm (0.7 in) thick. It is made of melamine high-density furniture board with a fine surface.

14. This machine is equipped with support wheel and moving roller. By adjusting the screw of the support wheel, the level of the whole machine can be adjusted and the whole machine can be adjusted in height within 7CM; when the screw of the support wheel is adjusted to the top When the whole machine is supported by the moving roller, the whole machine can be easily moved.

The whole machine adopts advanced electrostatic spraying technology Various parts are made of stainless steel, aluminum alloy, nickel plating and galvanizing process. It is corrosion-resistant, does not fade, is easy to clean,maintains the original color and smoothness for a long time, and does not rust for a long time.
