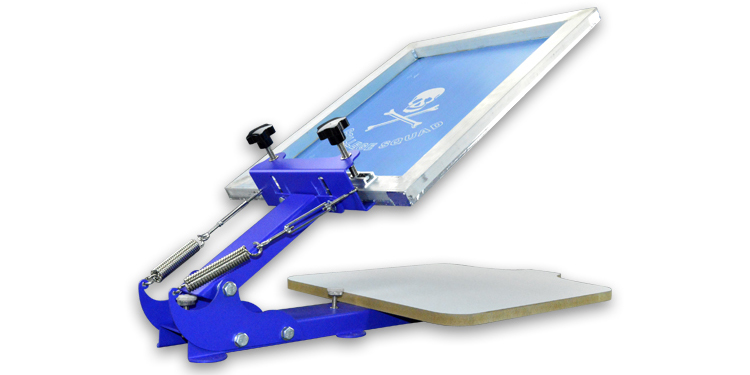

MK-T11A One Color Screen Printing Machine

This machine can directly fixed on the desk by screws ,it is mainly used in the one color screen printing.



The functions and features:

1.According to the height of the substrate ,chuck of the screen frame can adjust 5cm from top to bottom;

2. According to the needs, pallet can adjust 12cm from front to back;
3. By adjusting the turn buckle to suit different weight screen frames ;
4. Fixing the screen frame adopts aluminium alloy pressing plate ,and it can make the screen frame more stable;
5. Falling height of the screen frame can be adjusted by the support;

6.This machine is detachable structure, the user can install and use the machine according to the specifications and configuration of the full set of tools .



T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18 in) wide, the thickness is 1.8 cm (0.7 in);
Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

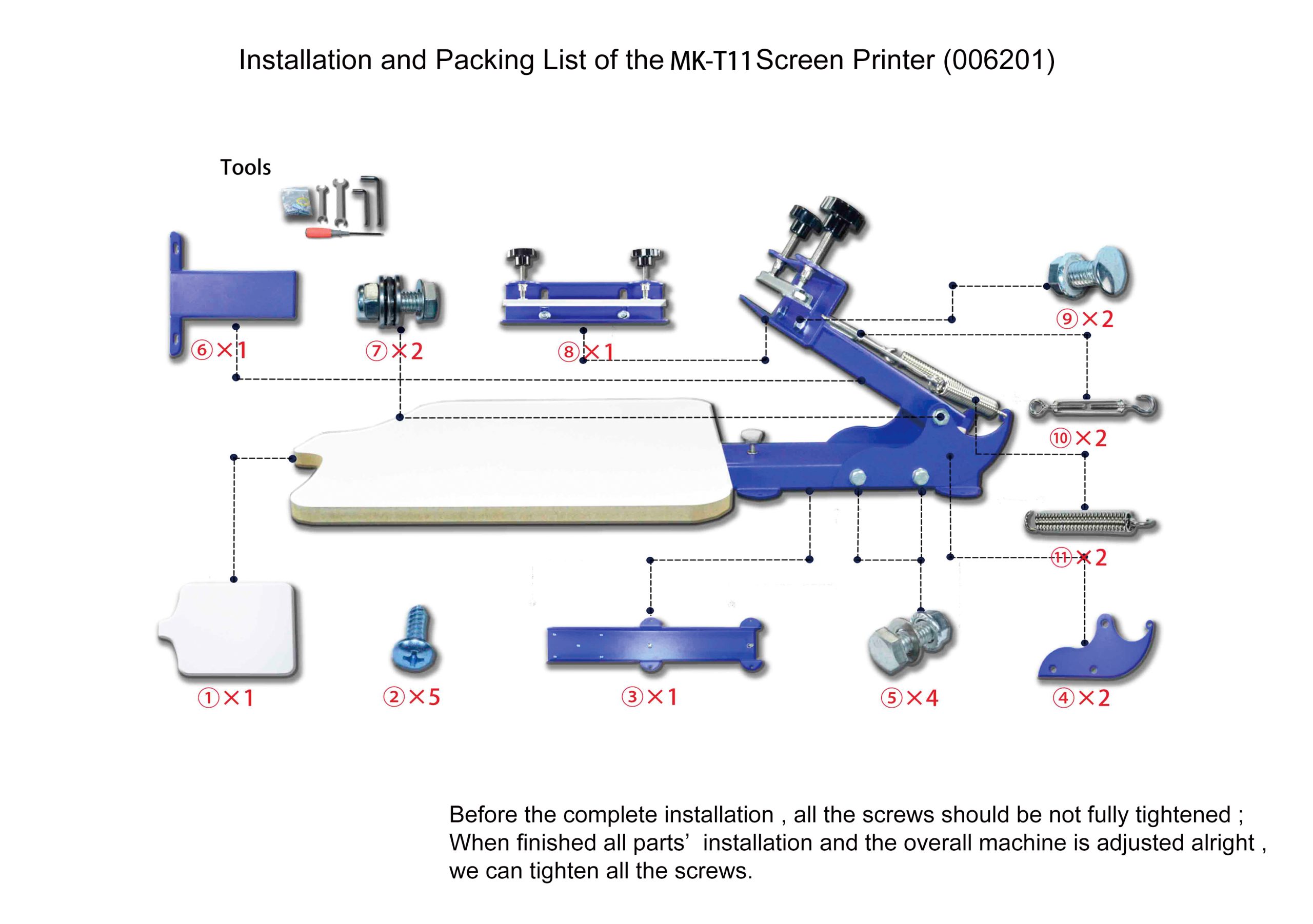

Before the complete installation , all the screws should be not fully tightened ; When finished all parts’  installation and the overall machine is adjusted alright ,we can tighten all the screws.

Product Code	006021
Product Name	MK-T11A One Color Screen Printing Machine
HS code	8443192290
Product Color	blue
Printing Area	22in(55cm)*18in(45cm)
Pallet Materials	HDF (High Density Fiberboard)
Machine using material	Steel plate
Machine surface treatment	Electrostatic spraying
Attachment material	Stainless steel or zinc plating, nickel plating
Machine size	35*18*8in
Net weight	21lb
Gross weight	22lb
Packing size	23*19*5in
Packing volume	0.04 m³
Packing material	Export fumigation
