Detachable right triangle pallet, if need more bigger printing area, can remove the pallet to bigger size platen
Fixed screen, can move up-down within 110mm
Larger printing area, can make 600x500mm advertising board,Display card & Protest sign
Parameters:
Platen sizes: 620x520x18mm
Length of screen clamps is 370mm
Adjustable range of up-and-down screw bar is 110mm
Net Weight: 18kg
Shipping Weight: 19kg
Machine sizes: 76x56x26cm
Package sizes:86x48x46cm
Main Features:
Specially designed sliding-adjustable disc gravity device.
Adjust the position of disc gravity rising and down will facilitates screens with different sizes and weights.
Specially designed gravity hole device for extra heavy screen frames.
The gravity hanging-hole device is specially designed for extra heavy screens, which is much easier and more convenient.
| Product Code | 008105 |

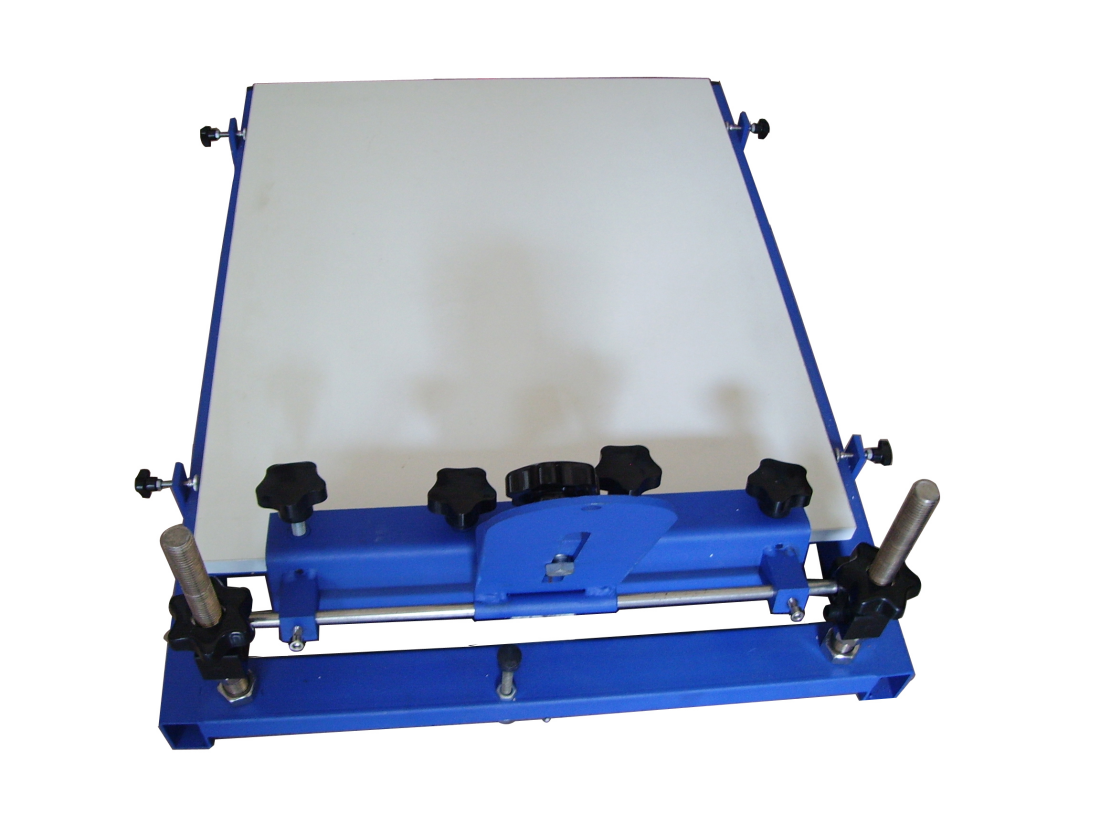

| Product Name | MK102 Big single color screen printing machine |
| HS code | 8443192290 |
| Product Color | blue |
| Pallet Size | 620x520mm |
| Machine using material | steel plate |
| Machine surface treatment | Electrostatic spraying |
| Pallet Materials : | HDF (High Density Fiberboard) |
| Net weight | 17KG |
| Gross weight | 19KG |
| Packing size | 86*48*46cm |
| Packing volume | 0.19m³ |
| Packing material | Export carton |
