* Manual presses are built for smaller production.
* If you’ll be working with limited space, manuals have smaller footprints than most automatic screen printing machines.
* Unlike automatic presses, manuals don’t need air supplies or electricity to operate, saving you space and money.
Product Code
008661
Product Name

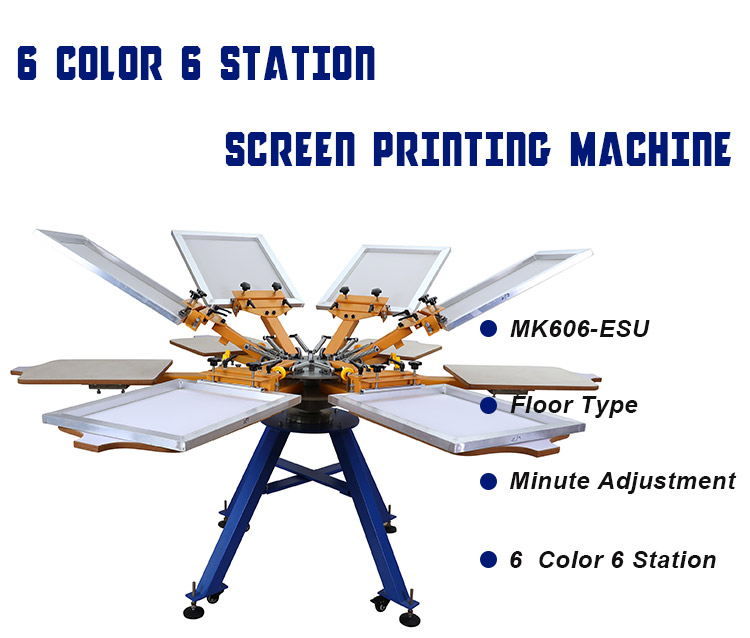

MK606-ESU 6 color 6 stations screen printer
HS code
8443192290
Product Color
blue
Pallet Size
450 x 610mm
Max frame size
55*70cm
Machine using material
steel plate
Machine surface treatment
Electrostatic spraying
Pallet Materials
HDF (High Density Fiberboard)
Net weight
165KG
Gross weight
168KG
Packing size
86*73*67cm
Packing volume
0.42m³
Packing material
plywood box
Main Feature:
ESU series machine is our company basic style with multi function screen printing head.
It is characterized by accurate positioning, free adjustment, stability of machine body and simple operation. This is designed for T-shirt.
Loose the top two screw handles to adjust the screen clamp, move the clamp from right to left, back and front, up and down and angles, no need to loose the screen directly .
Its central bearing-type rotation design can have the screen plates and table freely rotate.
Alum table and HDF table are available for choosing, new style base is more strong and stable.
Double rotary type, screen and table can rotate independently, strong base with caster to move freely.
We also can supply the different size of screen printing machine according to customer’s requirement.
Installation and Adjustment:
After opening the box, check whether the rotating machine is broken or not, and the accessories are all in readiness or not.
Use the equipped bolts to fix the under support arms onto the underlaid rotating table according to mark. Do a little fastening in case to adjust later.
Put the upper support arm on the positioning blocks of the under support arm one by one. The upper arms have been adjusted already before selling, and they cannot be loosened. Use the 2 bearings on the under arm to fasten tightly.
Put up all the upper arms and rotate them by 60°. Then put down all the upper arms one by one, and make sure all of them would fallen down in the middle of the positioning blocks
Repeat rotating like this by 360°. Properly adjust the gradient of under arms, to make sure all upper arms smoothly locate into the positioning blocks of the under arms. At the moment, fasten all the bolts of under arms. Now the adjusting process is finished.
Use the small screws to fasten the fixed frame of the bedplates on bottom.
Installing bedplate is fastened in the working position of under arms.Fasten the net frame on the clamp. When putting down the screen plate, it can match the area of the bedplate.
According to the overprinting requirement of the pattern, you can adjust fine tuning handle, to make the printing accuratly during the work.
