High temperature food and beverage micro water filtration ss304 bag filter housing for industrial equipment
APPLICATION OF STAINLESS STEEL BAG FILTER HOUSING
Food and beverage: beer, wine filtration; juice and soda Filtration ; Syrup, oral liquid filtration; Additives, oil filtration
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Automotive: electrophoretic paint filtration; varnishes and topcoats filtration
Electronics industry: lithium battery coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration
Petrochemical industry: aviation kerosene filtration; Diesel and fuel filtration ；Graphene, Ink filtration
>>>PRODUCT DESCRIPTION
PROFESSIONAL CUSTOMIZATION BY TECHNICAL TEAM

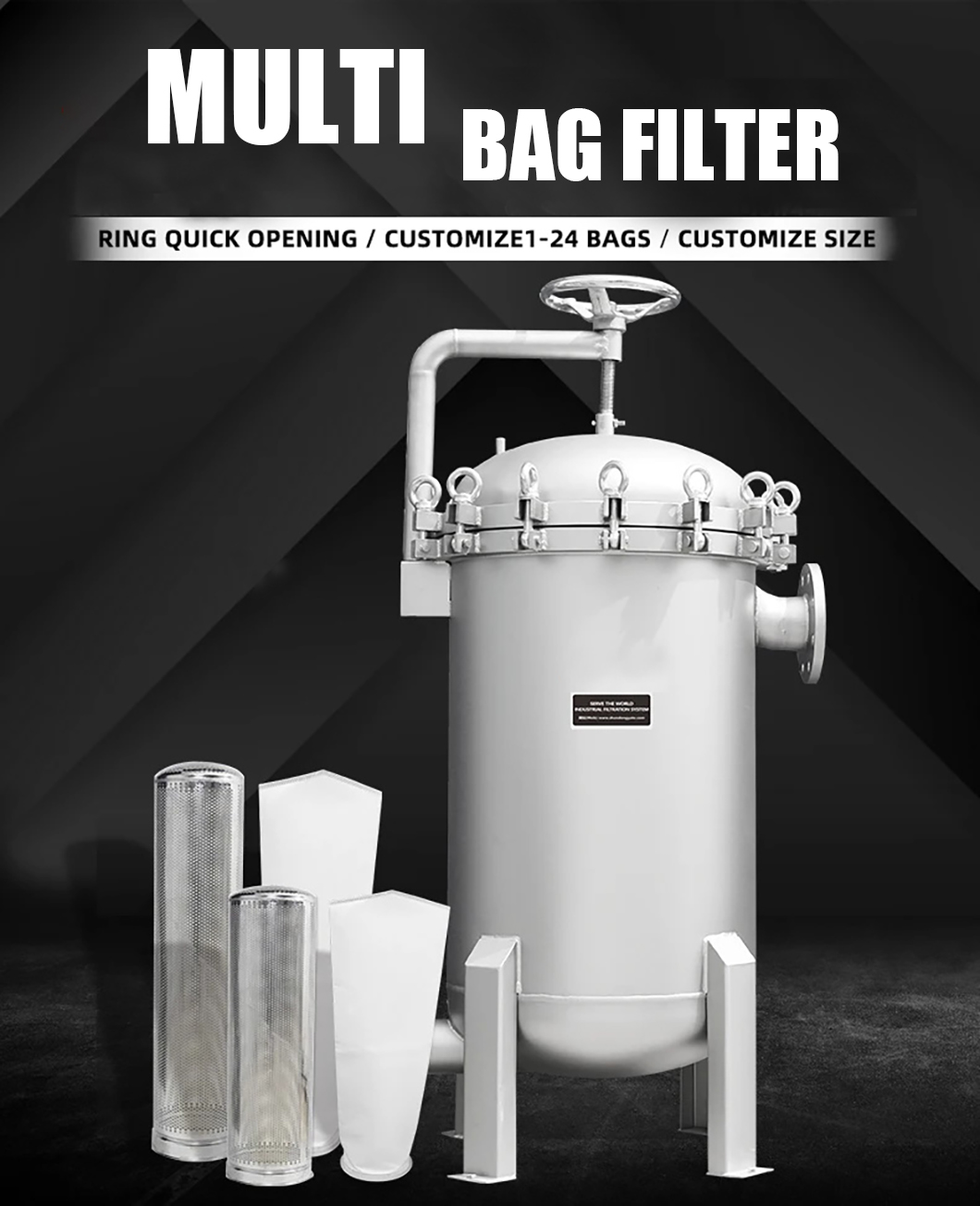

Multi bag filter housing is designed for high capacity pollution or large flow filtration requirements, provide 2-60 bags of design customization, import and export of a variety of sizes optional (DN50-DN300), convenient direct connection, ensure sufficient equipment strength and pipeline load bearing capacity, quick open design, unscrew the nut to remove the cover, convenient maintenance, Made of high-quality stainless steel 304, 316L and other materials.
| Model | Filter Bag# | Filter Bag
Qty |
Filtration Area(m2) | Connection | Max.Flow
(m3/h) |
Working Pressure(MPa) |
| INCE-1D | 1# | 1 | 0.25 | DN50 | 20 | 0.6 |
| INCE-2D | 2# | 1 | 0.5 | DN50 | 40 | 0.6 |
| INCE-2P2S | 2# | 2 | 1 | DN50-DN100 | 70 | 0.6 |
| INCE-3P2S | 2# | 3 | 1.5 | DN80-DN100 | 100 | 0.6 |
| INCE-4P2S | 2# | 4 | 2 | DN80-DN100 | 140 | 0.6 |
| INCE-5P2S | 2# | 5 | 2.5 | DN80-DN100 | 175 | 0.6 |
| INCE-6P2S | 2# | 6 | 3 | DN80-DN100 | 240 | 0.6 |
| INCE-7P2S | 2# | 7 | 3.5 | DN80-DN100 | 245 | 0.6 |
| INCE-8P2S | 2# | 8 | 4 | DN100-DN200 | 280 | 0.6 |
| INCE-10P2S | 2# | 10 | 5 | DN150-DN200 | 350 | 0.6 |
| INCE-12P2S | 2# | 12 | 6 | DN150-DN250 | 420 | 0.6 |
| INCE-14P2S | 2# | 14 | 7 | DN200-DN250 | 490 | 0.6 |
| INCE-16P2S | 2# | 16 | 8 | DN200-DN300 | 560 | 0.6 |
| INCE-18P2S | 2# | 18 | 9 | DN250-DN350 | 630 | 0.6 |
| INCE-20P2S | 2# | 20 | 10 | DN250-DN400 | 700 | 0.6 |
| INCE-22P2S | 2# | 22 | 11 | DN300-DN450 | 770 | 0.6 |
| INCE-24P2S | 2# | 24 | 12 | DN350-DN450 | 840 | 0.6 |
>>>ADVANTAGES
QUICK OPENING TECHNOLOGY OF ROCKER RING
M16 high strength lifting ring, rocker arm cap opening mechanism, easy maintenance, reduce costs, widely used in industrial and water treatment and filtration fields.
ADVANTAGES OF PLTT PRODUCTS
QUICK-OPEN TECHNOLOGY OF SWING ARM HOISTING RING
THE CORE OF THE BAG FILTER SYSTEM
Spring press and basket gasket increase bag tightness.Ensure no liquid side leakage, improve the filtration effect. 2-24 bags can be customized according to customer requirements.
DIRECTION OF INLET AND OUTLET
Can be customized according to customer use and installation conditions, inlet and outlet orientation, and DN25-DN250 flange caliber
