» Nylon filter mesh

PRODUCTS INFORMATION

Product Name: Nylon filter mesh, filter membrane

Width: 100cm, 127cm, 183cm, or customized

Weave Type: Plain weave, twill weave, dutch weave

Roll Length: 30-100m/Roll, Fixed Length, or customized



Model	Mesh Count (/cm)	Mesh Count (/inch)	Thread Dia (um)	Mesh Opening (um)	Thickness (um)	Weight (g/m2)
NL4/1950	4	10	550	1950	1100	307
NL5/1500	5	13	500	1500	1000	318
NL6/1267	6	15	400	1267	800	244
NL7/1079	7	18	350	1079	700	218
NL8/900	8	20	350	900	700	249
NL9/861	9	23	250	861	500	143
NL9/811	9	23	300	811	600	206
NL10/750	10	25	250	750	500	159
NL10/700	10	25	300	700	600	229
NL12/583	12	30	250	583	500	191
NL12/533	12	30	300	533	600	274
NL14/514	14	36	200	514	340	142
NL16/425	16	40	200	425	340	160
NL20/350	20	50	150	350	255	113
NL20/300	20	50	200	300	340	200
NL24/267	24	60	150	267	255	135
NL28/237	28	70	120	237	204	101
NL30/213	30	76	120	213	204	110
NL32/213	32	80	100	213	170	80
NL36/178	36	90	100	178	170	90
NL40/150	40	100	100	150	170	100
NL43/153	43	110	80	153	136	70
NL48/128	48	120	80	128	136	77
NL56/119	56	140	60	119	102	50
NL64/96	64	160	60	96	102	58
NL72/89	72	180	50	89	85	45
NL80/75	80	200	50	75	85	50
NL100/57	100	250	43	57	73	46
NL110/48	110	280	43	48	73	52
NL120/48	120	300	35	48	60	37
NL120/40	120	300	43	40	73	55
NL130/42	130	330	35	42	60	40
NL130/34	130	330	43	34	73	61
NL140/36	140	350	35	36	60	43
NL157/25	157	400	43	25	73	74
NL180/20	180	450	39	20	66	68
NL200/15	200	500	39	15	66	76
NL220/10	220	550	39	10	66	84
NL240/5	240	600	39	5	66	91

Remark: The above data are theoretic, please reference the actual data if there it differs.



Monofilament Nylon 6 or Nylon 6.6 Filter Mesh：

Monofilament Nylon is a versatile material due to its great strength, flexibility, long life, and resistance to abrasion. Nylon has excellent resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical pH range of 7-14. The term ‘Monofilament’ means that each thread used in the construction of the cloth is a single smooth solid strand instead of many smaller diameter threads twisted together, as in a spun or multifilament material. These monofilament threads are perfectly round in section and are extruded to exact and uniform diameters.

Nylon Filter Mesh Advantages:



1. They can be woven with great precision to give exact and regular apertures so the mesh openings are uniform.
2. The very smooth surface so that the filtered particles will easily separate from it.
3. They have great strength and elasticity Wear-resistant, Alkali-resistant.
4. Easy to clean and light in texture.

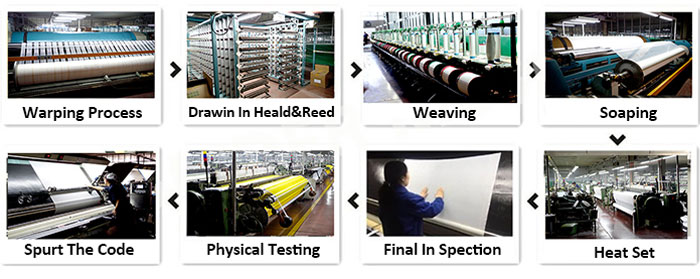

Macrokun’s Nylon Filter Mesh is made of monofilament PA6 or PA66 yarn/thread which is ideal for straining, sieving, or filtering most liquids, powders, or sludges; after weaving, Macrokun’s fabrics undergo a finishing process to add the properties required for specific applications. During the finishing process, the fabric is scoured to remove any foreign substances, and the yarns are then stabilized within the weave in order to eliminate shrinkage by a process known as ‘heat setting.

[Our Advantage]

1. 126 sets of P7100 and P7150 Sulzer weaving looms  from Switzerland, as well as Germany-made

the intellectual electronic warping machine can ensure our supply ability to be 5000 meters per day.

2. For normal mesh count mesh and other products, usually, we have stocks, and goods can be shipped

out within 15 days.

3. Our production process is fully based on high computer technology, it is accepted as the only

company capable of having TSE ( Chinese Standard Institution ) and ISO 9001:2008. 90% of our silk screen printing mesh is exported to Southeast Asia, North America, Europe, and other parts of the world.

We have a good reputation in the world with high quality and competitive price.

Direct factory customization, reduce the link, you can enjoy the factory price; factory large-scale

procurement of raw materials can control the cost very well.

[Packing]

1. Paper tube inside, plastic bag outside, then packed in cartons.
2. Fold the mesh into a plastic bag, then packed in cartons.

[Shipping]

1. Samples orders are usually within 3 days shipped by Courier (within DHL, TNT, FEDEX, UPS, EMS, and so on)
2. Small quantity orders usually within 3-7 days shipping by air or by sea.
3. Large quantity orders usually within 7-15 days shipped by sea.
4. The main export port: are XINGANG, BEIJING, SHANGHAI, QINGDAO, NINGBO, and so on.
