Structure And Usage

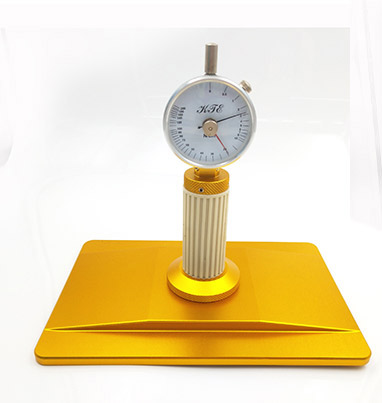

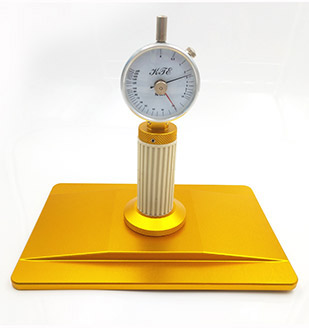

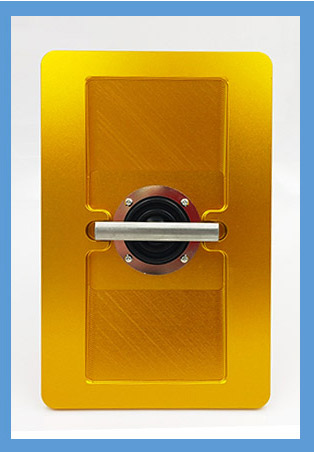

1. KTE200 tensimeter consists of chassis, operating handle, watch head, membrane rubber
waterproof ring and several internal parts.

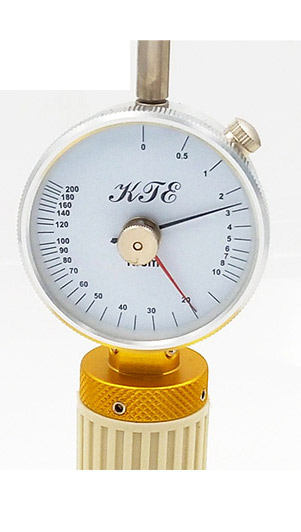

2. KTE200 tensimeter dial is not uniform scale, can directly measure the data of fabric tension,
without reference to the table conversion.
3. KTE200 tensimeter has reading pointer “I” but does not return pointer “II”.
Before use, the zero position of the rotating dial is aligned with the pointer “I”, and then the
pointer “II” is moved to zero along the counterclockwise direction, holding the instrument
handle, so that the chassis is gradually pressed to the tested network surface, until the bottom
plane of the chassis all touches the real network surface, and then you can read.
At the same time, the pointer “I” rotates clockwise and pushes the pointer “II” to the reading
position. When the instrument is removed after the test, the pointer “I” quickly returns to zero
and the pointer “II” still stays in the reading position.

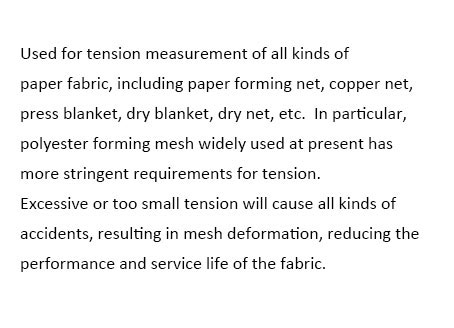

4. KTE200 tensimeter does not need any power supply, reasonable structure, easy to use,
good waterproof performance, easy to carry, suitable for polyester molding net, polyester
dry net, paper copper net, wet and dry blanket and other moving fabric and static fabric
tension measurement.
Matters Need Attention
1. It is forbidden to press the semi-cylinder sensor with fingers.
2. Do not place the instrument on the hard plate, otherwise it will damage the instrument or
reduce the accuracy of the instrument.
3. After use, wipe the instrument clean with dry cloth and place it in the box.

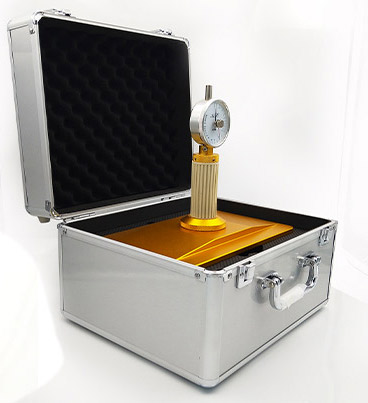

4. The tensimeter should be stored and carried in a box when not in use.
