The platen paper uses imported parchment paper as the base material, and uses natural
rubber and tackifying resin as the main materials of the pressure-sensitive adhesive.
It is combined with specific additives, coating, packaging and other processes.
Its adhesion performance and anti-aging performance are excellent, and it is used in
printing and applique industries.
| Model | PM50 | PH50 | PM70 | PH70 | |
| Adhesion (g/25mm) | 200-400 | 400-700 | 200-400 | 400-700 | |
| Base Weight (g/㎡) | 50±3 | 50±3 | 70±3 | 70±3 | |
| Width (mm) | 500-1350 | 500-1350 | 500-1350 | 500-1350 | |
| Length (m) | 100 | 100 | 100 | 100 | |
| Storing(Months) | 12 | 12 | 12 | 12 | |
| Tensile strength | Horizontal | ≥2.0 | ≥2.0 | ≥3.0 | ≥3.0 |
| Vertical | ≥3.0 | ≥3.0 | ≥4.0 | ≥4.0 | |
| Tear strength | Horizontal | ≥320 | ≥320 | ≥600 | ≥600 |
| Vertical | ≥280 | ≥280 | ≥500 | ≥500 | |
Remark:The above datas shows only part of the product parameters,it is for reference only,please
contact us for more information for special needs.The corresponding sticky products can be dustomized according to customer demand.
Common Specifications
500mm*100m、550mm*100m、600mm*100m、650mm*100m、700mm*100m、1200mm*100m
Storage conditions
Do not transport or store with volatile organic solvents,avoid direct sunlight,rain.It should
be stored at a temperature of 10℃to 30℃ and a humidity of 40% to 70%,Buy for the best
performance within 6 months after purchase.Storage,the platen mask should be placed,so
as not to crush.

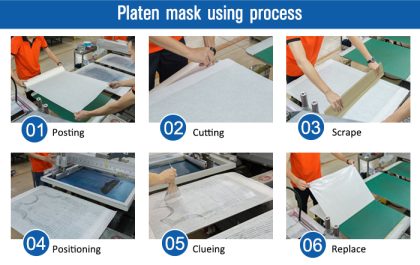

Before use, ensure that the platen clean hairless.
3.Then scrape the platen mask with hand or scraper, So that more closely linked to platen.
4.Draw lines on the platen mask positioning.
1.Platen Protection Mask: Apply to all kinds of printing machine (oval printing machine, octopus
printing machine, etc.), as the cutting piece positioning. Can also be used for hand-printed platen,
embroidery platen positioning.
2.Transfer Mask: It is suitable to transfer locating of motorcycles, vehicles and of labels on
containers, aviation, electrical. There are various models of medium and high adhesion available
for customers to select based on particular weather, material.
Platen Mask is import parchment as the substrate, with natural rubber and thickener resin
as the main material of pressure-sensitive adhesive. And it’s together with a specific
additive coating, packaging and other processes. It is attached to the performance and
anti- aging performance, used in printing,decals industry.
