» Polyester filter mesh

PRODUCTS INFORMATION

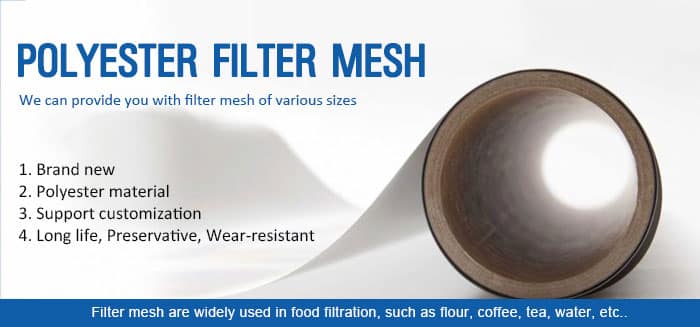

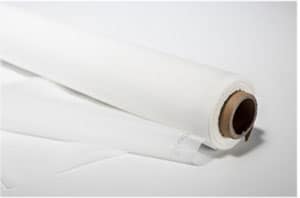

Product Name: Polyester filter mesh

Width: 115 cm, 127 cm, 145 cm, 165 cm,

maximum 365 cm, or customized

Roll Length: 30-100m/Roll, Fixed Length,

or customized

Type	Mesh Count (Mesh/inch)	Weave	Aperture (um)	Opening(%）	Thread Diameter (um)	Weight (g/㎡）
08250	20	1	1000	62	250	117
12250	30	2	590	49	250	175
13140	33	3	640	69	140	56
16200	40	4	430	46	200	149
18170	45	5	390	48	170	120
19180	50	6	355	49	180	137
24140	60	7	280	44	140	110
24150	60	8	270	41	150	126
24100	60	9	320	57	100	56
29120	75	10	230	57	100	56
32100	80	11	216	46	100	75
32064	80	12	250	62	64	31
36090	90	13	190	45	90	68
39055	100	14	200	62	55	30
39064	100	15	190	56	64	38
39070	100	16	185	53	70	46
43080	110	17	150	42	80	65
48055	120	18	153	52	55	36
48064	120	19	145	47	64	47
48070	120	20	140	44	70	56
55055	140	21	130	51	55	40
55064	140	22	120	44	64	53
64055	160	23	100	40	55	48
64064	160	24	90	32	64	62
72048	180	25	91	42	48	39
72055	180	26	84	35	55	53
77048	195	27	82	40	48	42
77055	195	28	75	33	55	57
80048	200	29	77	37	48	44
90048	230	30	62	32	48	50
10040	250	31	58	33	40	37
11040	280	32	49	29	40	40
12031	300	33	50	35	31	27
12034	300	34	46	30	34	35
14031	350	35	39	29	31	30
14034	350	36	35	23	34	39
15031	380	37	34	26	31	32
15034	380	38	30	20	34	42
16527	420	39	32	28	27	29
16531	420	40	27	20	31	37
18127	460	41	25	20	27	31
20031	500	1	19	14	31	45
55080	460/120	43			55/80
55100	460/110	44			55/100

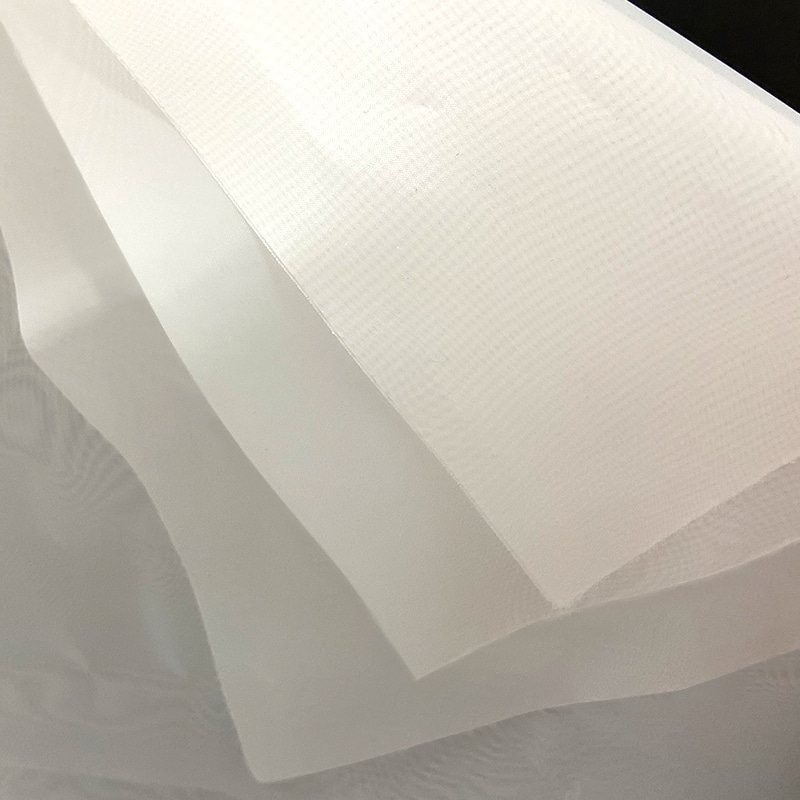

Macrokun produces and supplies monofilament polyester filter mesh(low-elongation) with a wide range of mesh counts and significant advantages compared with traditional polyester woven mesh.

High quality and precision with a wide range of from 10 meshes to 460 meshes/inch.

Our polyester monofilament woven screen meshes have excellent tear resistance which permits high fabric tensions to be achieved with virtually any commercially available stretching system. And very good dimensional stability guarantees highly reproducible tension. Precision weaving of dimensionally stable threads produces a fabric with predictable and close tolerance counts and mesh opening for consistent registration and sharp resolution.

Polyester Filter Mesh Advantages：

1. Good acid resistance.

2. Temperature resistance.

3. Wear resistance.

4. High tensile strength, Low-elongation.

5. Easy cleaning, and good air permeability.

Monofilament mesh is woven from yarn that is extruded from heated polyester into a single strand conventional monofilament. Polyester screen fabric will elongate under tension: the higher the tension level, the more the thread can stretch. At excessive tension levels, the thread reaches its “plastic deformation” point, and the screen will no longer hold tension.

[Our Advantage]

1. 126 sets of P7100 and P7150 Sulzer weaving looms  from Switzerland, as well as Germany-made

the intellectual electronic warping machine can ensure our supply ability to be 5000 meters per day.

2. For normal mesh count mesh and other products, usually, we have stocks, and goods can be shipped

out within 15 days.

3. Our production process is fully based on the high computer technology, it is accepted as the only

company capable of having TSE ( Chinese Standard Institution ) and ISO 9001:2008. 90% of our silk screen printing mesh is exported to Southeast Asia, North America, Europe, and other parts of the world. We have a good reputation in the world with high quality and competitive prices.

Direct factory customization, reduce the link, you can enjoy the factory price; factory large-scale

procurement of raw materials can control the cost very well.

[Packing]

1. The paper tube inside, the plastic bag outside, then packed in cartons.
2. Fold the mesh into a plastic bag, then packed in cartons.

[Shipping]

1. Samples orders are usually within 3 days shipped by Courier (within DHL, TNT, FEDEX, UPS, EMS, and so on)
2. Small quantity orders usually within 3-7 days shipping by air or by sea.
3. Large quantity orders usually within 7-15 days shipped by sea.
4. The main export port: are XINGANG, BEIJING, SHANGHAI, QINGDAO, NINGBO, and so on.
