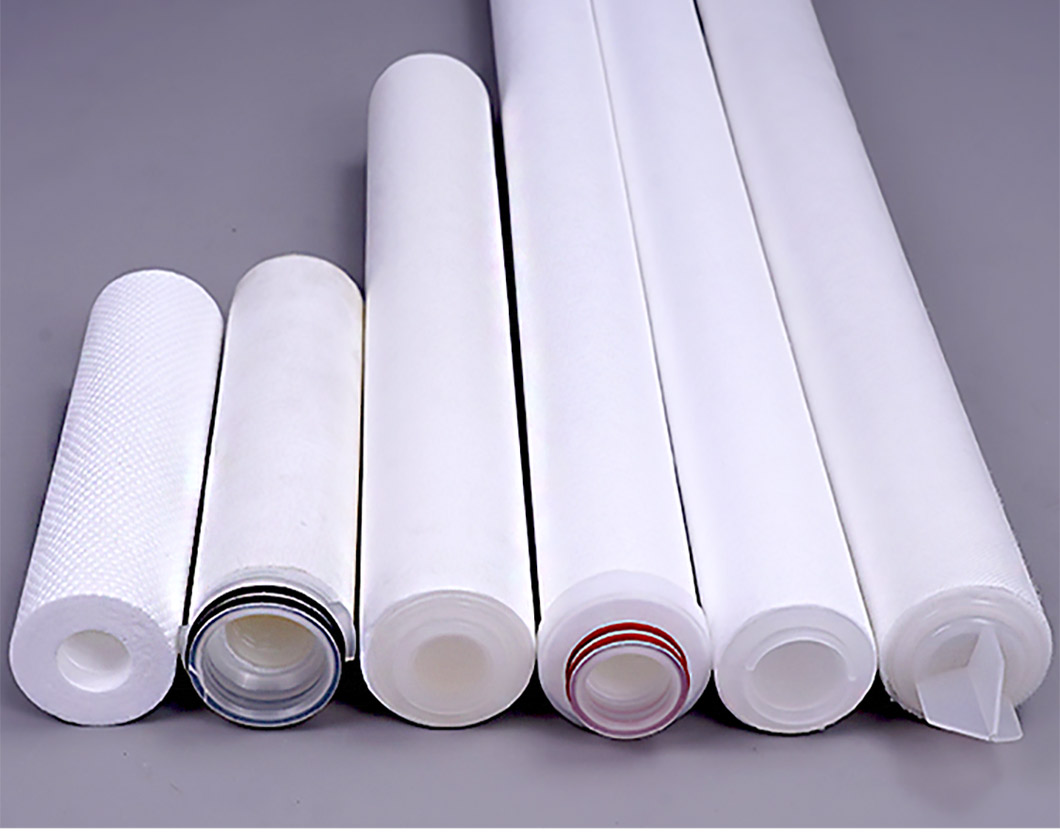

PP meltblown filter cartridge
Melt blown filter cartridges are tubular filter cartridges made of non-toxic, odorless PP particles after heating, melting, spinning, drawing and forming.
| Product name: | PP meltblown filter cartridge |
| Filter material: | PP polypropylene |
| Filter rating: | 1um, 3um, 5um, 10um, 20um, 30um, 60um |
| PH: | 1-13 |
| Pressure difference: | Forward 0.4Mpa. |
| Working temperature: | <70℃ under 0.25 Mpa. |
| Sterilization: | Tolerate 126°C, 30 minutes online steam sterilization. |
| Endotoxin: | The water extract of the filter column is tested by IAL, and the endotoxin content is less than 0.5 EU/ml |
Hot Melt Spinning Process
External transmission and internal density, good pollution interception effect and long service life.
High Pressure Bearing Structural Design
Internal thread structure, enhanced pressure resistance and strong dirt-holding capacity.
High Pressure Bearing Structural Design
Internal thread structure, enhanced pressure resistance and strong dirt-holding capacity.
Features:
1.High filtration efficiency, accurate filter rating, uniform filter cartridge pores. Up to 85% filtration efficiency.
2.Low filtration resistance, high flow, high dirt holding capacity and long service life. During the production process, the fiber diameter and gap are adjustable. The filter cartridge pore is small in inner layers and large in outer layers, which enhances its flow and dirt holding capacity and makes the filter cartridge is not easily clogged, thereby extending its service life.
3.High cleanness, no pollution to water quality, great resistant to acids, bases, organic solvents and corrosion.
4.High strength. When the differential pressure between the filter inlet and outlet exceeds 0.4 MPa, the filter cartridge will not deform; when the temperature is greater than 90 °C, the filter efficiency will not be reduced.
5.It has high hydrophilicity after PP treatment and can absorb 10 times the weight of water, so it can be used in oil and water separation applications.
