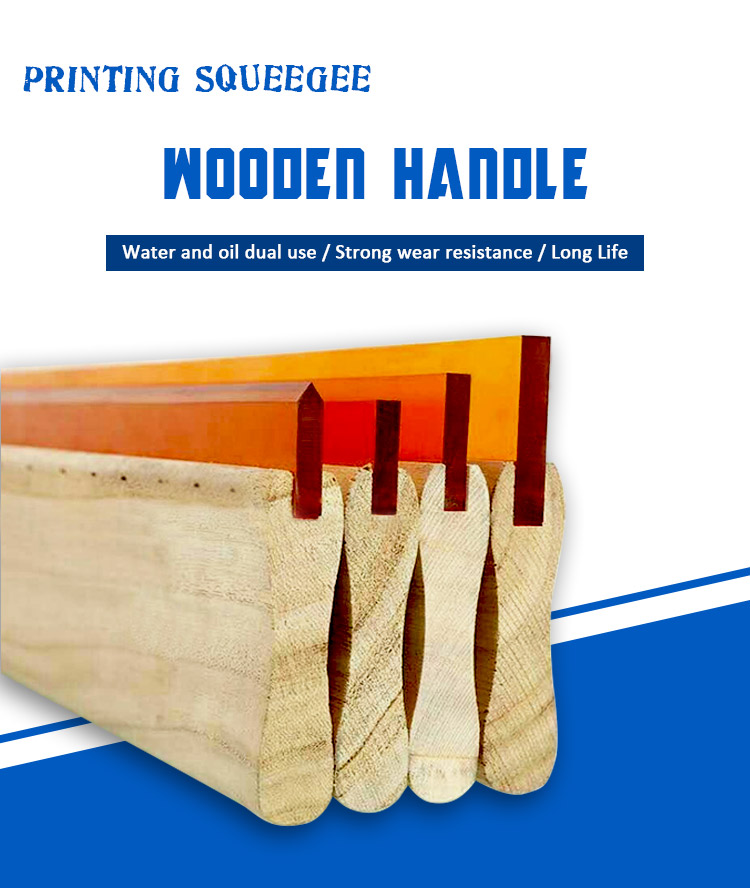

» Printing squeegee wooden handle

The screen printing wooden handle Squeegee can make the ink flow through the screen and contact the printing material to ensure that the screen is suitable for the surface of the printing material, and can remove the excess ink on the screen.

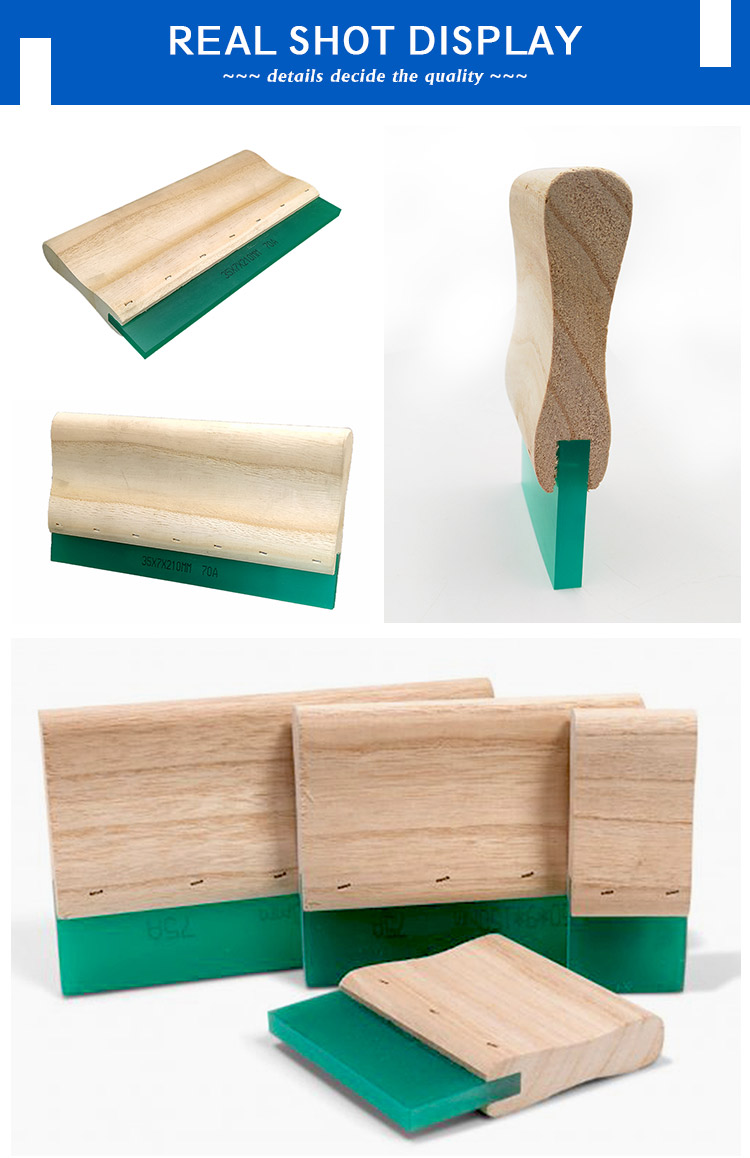

We provide size customization, the above pictures are our customized products according to customer requirements, for your reference. Come and order now!

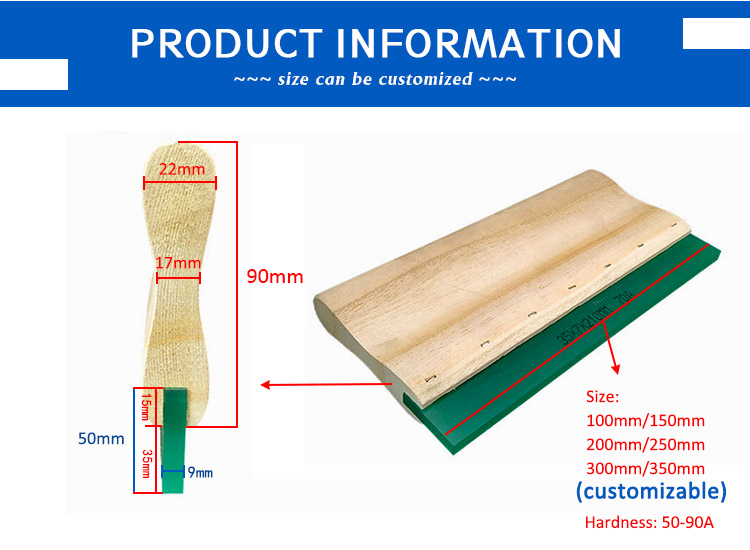

Product name:	Wooden Handle Printing Squeegee	Handle Width:	90mm,110mm,customized
Handle material:	Quality wood	Handle Length:	10-100cm, customized
Squeegee material:	100% Polyurethane	Squeegee Hardness:	50-95 A
Squeegee size:	25*5,25*7,35*5,40*7,50*7,50*9mm or Customized	Blade shape:	Flat, sharp, oblique, blunt
Product use:	Make glue or ink flow through the screen to contact the substrate material,ensure that the screen is suitable for the surface of the substrate, and can remove excess glue and ink on the screen

Standard Profiles



E1:Straight Square Edge

E2:Single Bevel+Flat tip

E3:Single Bevel

E4:Double Bevel+Flat tip

E5:Double Bevel (V shape)

E6:Bull Nose (round top)

E7:H shape

E8:Triple layer

E9:Double layer

Flatscreen printing squeegee has certain adaptability and can withstand high pressure.

Bevel screen printing squeegee has the characteristics of flat and sharp shaving, and is not prone to collapse.

Sharp screen printing squeegee has good flexibility, compliance, reduces pressure, and is suitable for printing on uneven surfaces.

The larger the degree of the strip, the harder the scraper, and the smaller the degree, the softer the extrusion.

1. Durable Wood and Polyurethane Material: The screen scraper is made of sturdy polyurethane blade and wooden handle. It is non-toxic and safe to use. It can be firmly fixed, the color is stable, and it is not easy to fade. The blade is printed under high temperature and high pressure, and the tensile strength exceeds 2,000 pounds. It has high-quality wear resistance It can be used for a long time because of its high performance and durability.
2. Ergonomic Design: Built-in sturdy polyurethane spatula and wooden handle. The overall product conforms to the ergonomic straight handle design, which is comfortable to hold. The handle is arc-shaped and has no edges and corners, which reduces the friction of the user’s hand during use.
3. Easy to use: The handle scraper tool is a tool used to scrape the ink on the screen to make it leak to the substrate. The squeegee is a combination of a scraper and a handle. Insert the rubber blade into the wooden handle and drive the nail into its position, then after assembly, it can be used after grinding.
4. The Ideal Printing Tool: It can be used for graphics applications, textile applications, manual printing and many machine applications. You can use a squeegee to create a variety of printing patterns, such as printing beautiful printing patterns on clothes, or making a perfect ink print. The comfortable grip and moderate grip make the pattern more complete and clear, bringing you a pleasant DIY time.

Use Suggested:

When using, try to avoid excessive pressure of the scraper on the screen, which will cause: the ink layer is extremely thick, difficult to control, and will also wear the screen excessively. printing with proper pressure. When loading the squeegee into the handle, do not apply excessive pressure or use a thick gauge to press it in, the squeegee should take regular breaks, not continuous use.



Cleaning Method:

Wipe off excess ink with a cloth first, and then use a soft cloth dipped in a suitable solution to clean it. Do not use strong corrosive solvents. After grinding, the spatula should be completely idle before use to allow the solvent on the spatula to fully evaporate.



Grinding Method:

Common grinding methods can be used: belt type, grinding wheel type. The squeegee must be kept dry during grinding, and the squeegee after grinding should not be wiped with solvent immediately.



Storage Method:

For long-term storage, the squeegee should be wrapped and placed flat in a dry, cool and dark room. Avoid direct light exposure, otherwise the performance and hardness of the scraper will change.
