» Screen Printing Drying Rack

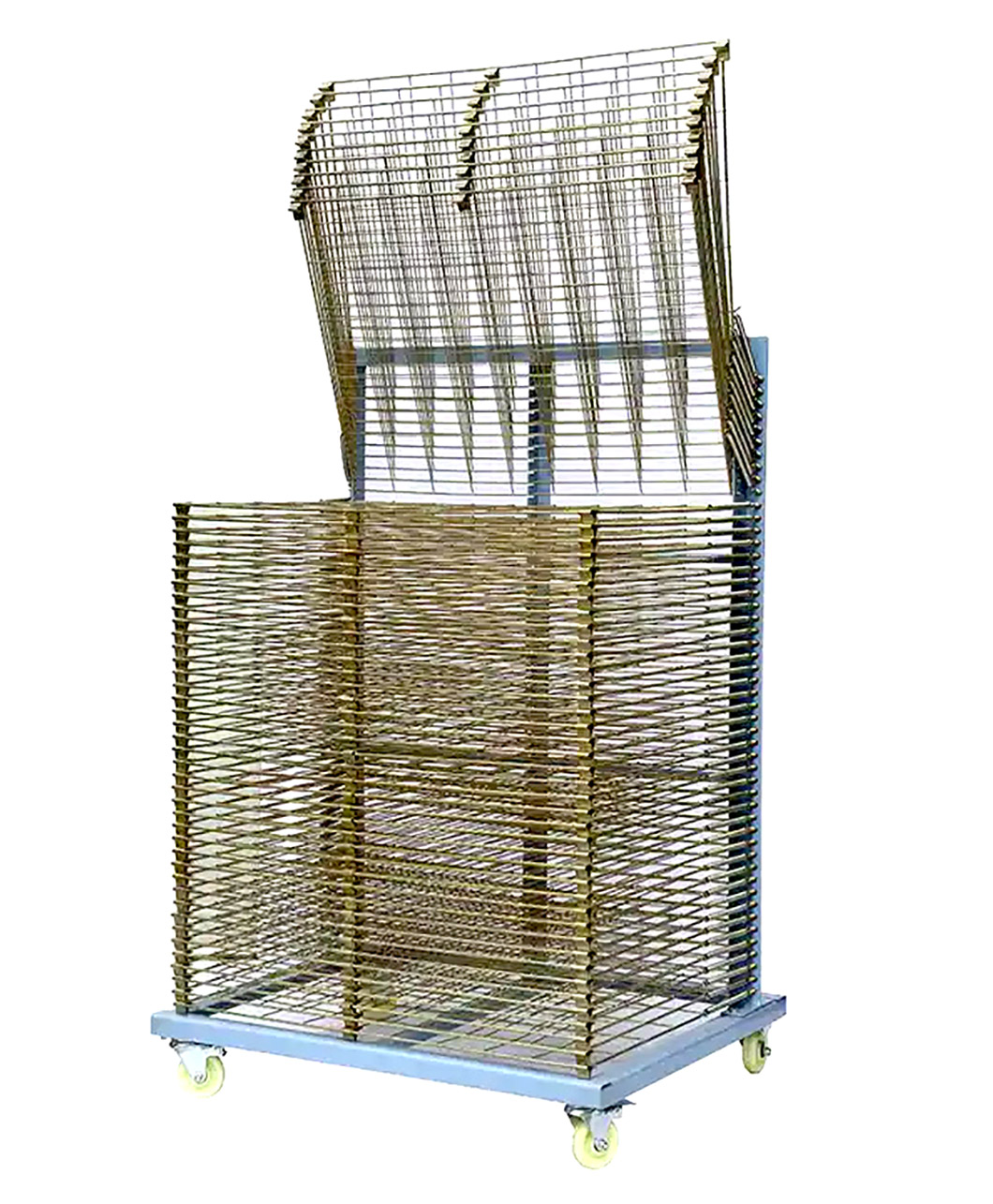

Screen Printing Drying Rack

The drying rack is an auxiliary equipment, you can put paper, film, screen plate &other

flat items on it to dry in nature, it is very convenient and space-saving.

This screen print storage rack is suitable for storing prints, paintings, metal name plates, and other flat substrates it is an auxiliary equipment for putting t-shirts, film, and screen

plates. etc on it to dry in nature.

A simple product that saves time and effort.

NORMAL VERSION

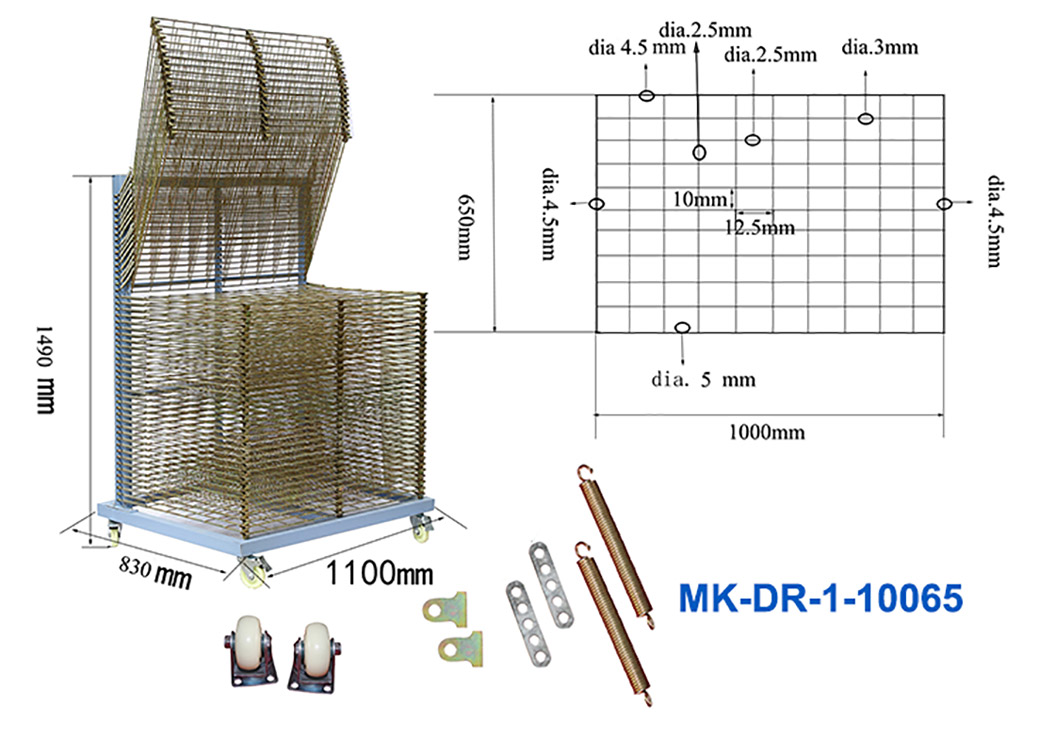

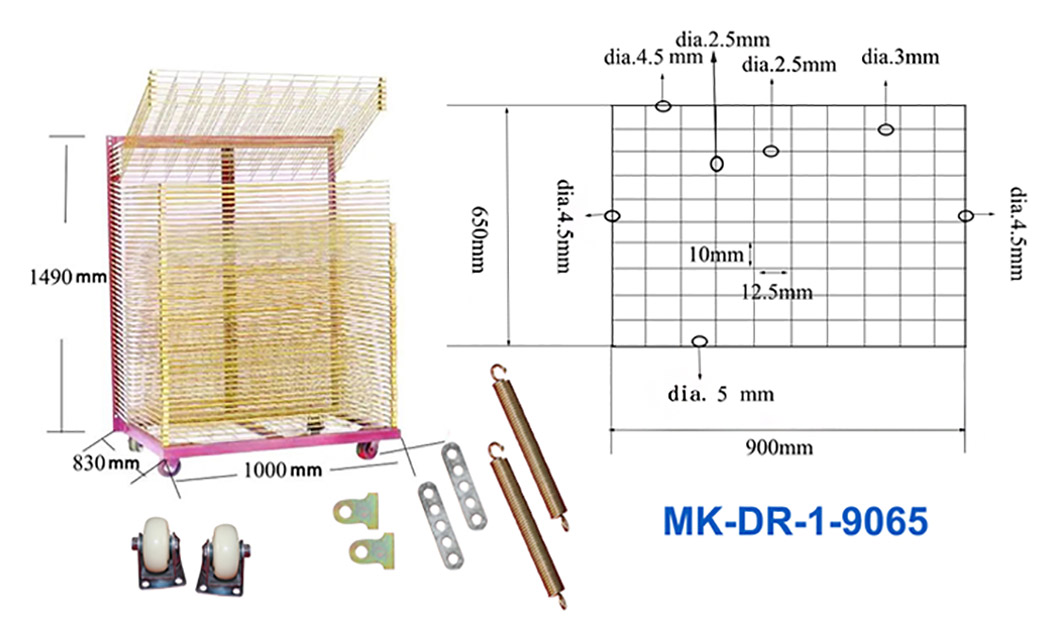

Model	MK-DR-1-9065	MK-DR-1-10065
Parameter	Mesh size: 900x650mm	Mesh size: 1000x650mm
	Size: 1000x830x1490mm	Size: 1100x830x1490mm
	Wire diameter: 5×2.5×4.5mm	Wire diameter: 5×2.5×4.5mm
	Layer:50	Layer:50
	Wheel: 4 pcs	Wheel: 4 pcs
	Mesh hole: 10×12.5mm	Mesh hole: 10×12.5mm
	Distance between layers: 2.5cm	Distance between layers: 2.5cm
Packing size	1350*1050*290 mm	1370*1160*290 mm
Weight	64 KG	75KG

ENHANCED

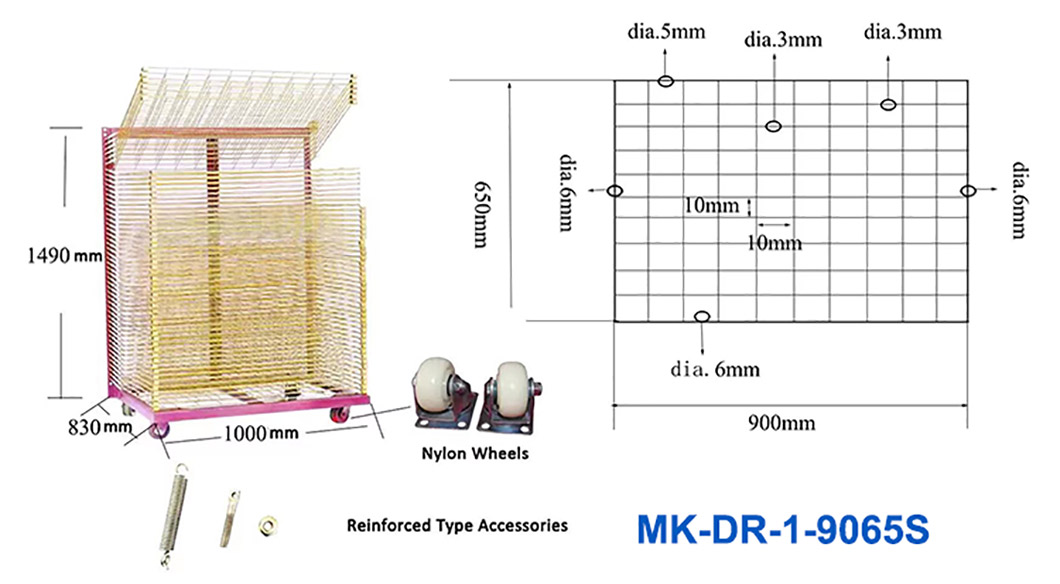

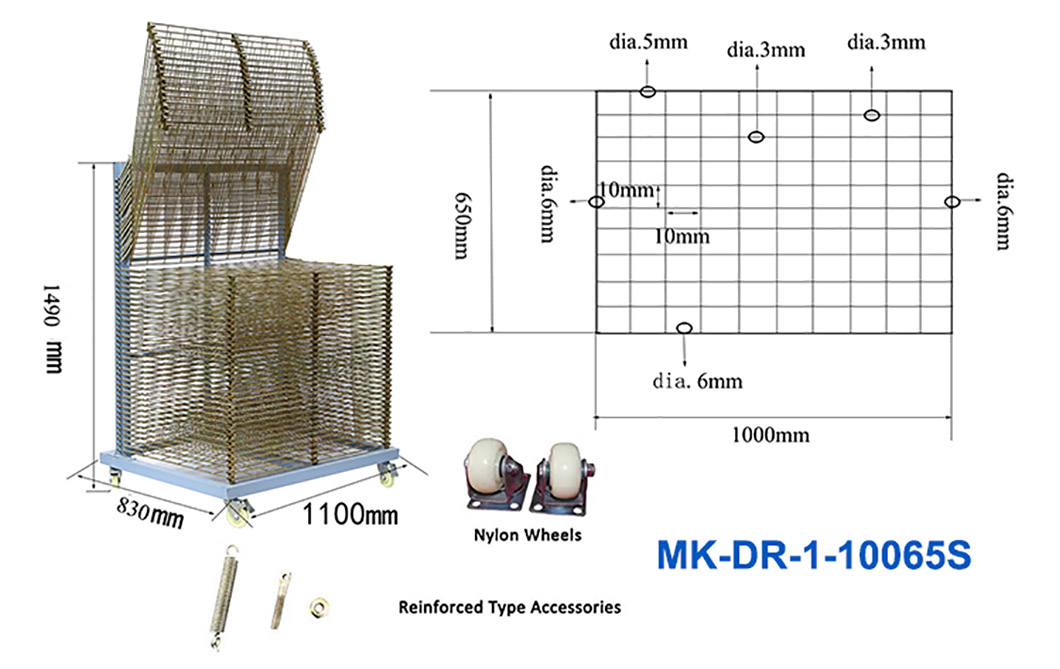

Model	MK-DR-1-9065S	MK-DR-1-10065S
Parameter	Mesh size: 900x650mm	Mesh size: 1000x650mm
	Size: 1000x830x1490mm	Size: 1100x830x1490mm
	Wire diameter: 6mmx3mmx5mm	Wire diameter: 6mmx3mmx5mm
	Layer: 50	Layer: 50
	Wheel: 4 pcs	Wheel: 4 pcs
	Mesh hole: 10x10mm	Mesh hole: 10x10mm
	Distance between layers: 2.5cm	Distance between layers: 2.5cm
Packing size	1370*1050*350mm	1370*1160*350 mm
Weight	90KGS	100KGS

Screen Printing Drying Rack Features:



1. Versatile Design for Many Applications

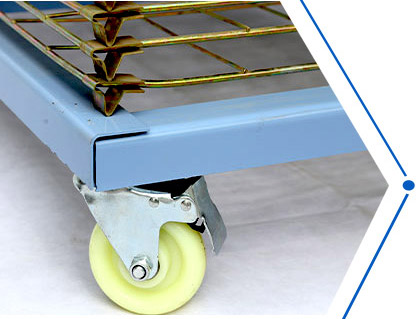

2. Move freely with the rubber wheel.

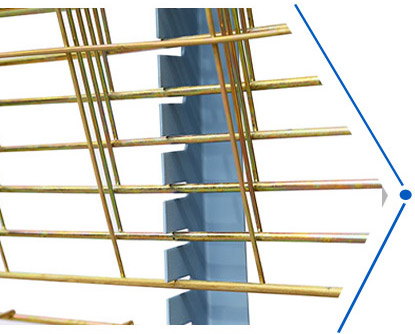

3. all-steel structural framework with an enameled finish

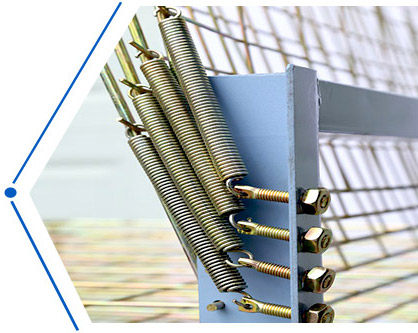

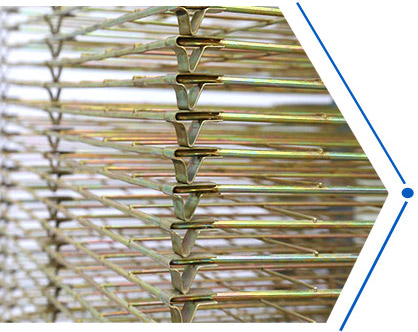

4. Spring tension arms hold the shelves in any convenient position
5. Deportable for transport and save freight.
6. Number of layers: 50 layers
7. A drying rack is the most commonly used small equipment in the printing industry, printed products can be naturally dried on a multi-layered shelf.
8. For screen prints, woodblock prints, etchings, glass, metal, and paper can easily store and dry, to save space.

1. Samples orders are usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS, and so on).

2. Small quantity orders usually within 3-7 days shipping by air or by sea.

3. Large quantity orders usually within 7-15 days shipped by sea.

The main export port: SHENZHEN.
