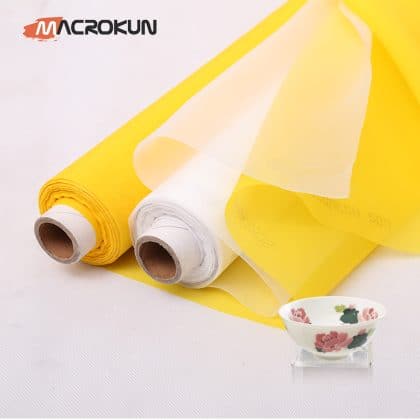

Screen Printing Mesh

PRODUCTS INFORMATION:

Meterial:  100% polyester monofilament

Width:  0.6-3.65 Meters

Mesh count:  6T to 180T(15mesh to 460mesh/inch)

Color:  white and yellow or customized

Roll length:  30-100m or customized



Product spacifacation table:

Type	Mesh Count (Mesh/inch)	Aperture (um)	Thread Diameter (um)	Opening (％）	Thickness (um)	Ink Through Volume Theoretically cm³/m²	Tensile Strength N/CM
6T-400	15	1300	400	65	780-810	560	110
10T-250	25	700	250	49	508-518	355	85
12T-250	30	610	250	53	495-505	305	85
15T-250	38	467	250	49	489-501	213	83
24T-100	60	316	100	57	188-195	109	49
24T-120	60	303	120	51	230-240	104	51
30T-120	75	213	120	41	235-245	102	52
32T-100	80	212	100	46	145-155	69	48.5
36T-90	90	185	90	45	155-165	65	59
39T-55	100	195	55	56	88-96	55	24
39T-80	100	176	80	48	148-153	73	31
43T-80	110	147	80	40.8	125-131	53	31
47T-55	120	152	55	51	88-96	47.6	29
48T-70	120	135	70	41	108-120	45.5	30
53T-55	135	128	55	47	88-96	44.5	29
54T-64	137	115	64	38.5	95-105	38.9	30
54T-70	137	108	70	34	108-120	40	31
62T-64	155	105	64	42	98-107	33	31
64T-45	160	105	48	43	73-82	36.5	30
64T-55	160	98	55	38	85-95	36.1	30
64T-64	160	88	64	30	95-105	30.7	31
68T-55	175	85	55	34	85-95	29.2	48
68T-64	175	78	64	29	108-110	32	58
72T-45	180	92	45	40	68-76	33.1	27.6
72T-48	180	90	48	36	75-84	33.1	28
77T-48	195	81	48	34	80-85	29	28
77T-55	195	75	55	28	86-92	26.6	29
80T-48	200	72	48	33	75-84	28.7	27
90T-48	230	56	48	25	77-85	23.5	25
100T-40	250	58	40	37	66-73	21.3	28.5
110T-40	280	52	40	33	78-85	20.5	29.6
120T-34	305	45	34	30.5	52-57	18.4	30.5
140T-34	355	31	34	19.5	56-62	14.4	31
150T-31	380	36	31	29	43-47	13.1	30.5
150T-34	380	30	34	20.5	56-62	14.9	30.5
165T-31	420	31	31	22.5	52-58	12.5	28.9

Remark:The above datas are theoretic ,please reference the actual datas if there it differs.



Advantages:



High Tension: The fracture resistance is high, and the tension value of the printing mesh is significantly higher than that of the ordinary printing mesh.

High Stability: The tension remains very stable during the printing process, thus ensuring the printing quality and the service life of the screen.



High abrasion resistance: The high-quality fiber is used as the raw material, and the surface of the screen is specially treated to withstand high pressure and multiple frictions.

Therefore, the screen has high safety and printing resistance.



Uses：

Screen printing mesh is widely used in printing packaging, self-adhesive decals, packaging materials, printing services, printing machines and other processed products.
