» Screen printing mesh

Why Choose Our Products?

1. The product is colorful, careful, and stable!

2. Various specifications can be made!

3. Customer service reception before and after sale!

PRODUCTS INFORMATION

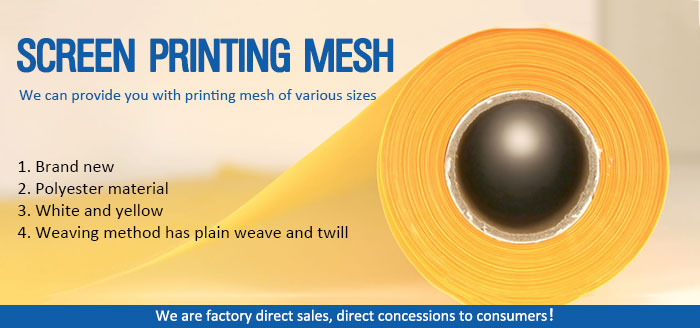

Product Name: Screen printing  mesh

Meterial: 100% polyester monofilament

Width: 0.6-3.65 Meters

Mesh count:  6T to 180T(15mesh to 460mesh/inch)

Color: white and yellow or customized

Roll length:30-100m or customized

Type	Mesh Count (Mesh/inch)	Aperture (um)	Thread Diameter (um)	Opening (％）	Thickness (um)	Ink Through Volume Theoretically cm³/m²	Tensile Strength N/CM
6T-400	15	1300	400	65	780-810	560	110
10T-250	25	700	250	49	508-518	355	85
12T-250	30	610	250	53	495-505	305	85
15T-250	38	467	250	49	489-501	213	83
24T-100	60	316	100	57	188-195	109	49
24T-120	60	303	120	51	230-240	104	51
30T-120	75	213	120	41	235-245	102	52
32T-100	80	212	100	46	145-155	69	48.5
36T-90	90	185	90	45	155-165	65	59
39T-55	100	195	55	56	88-96	55	24
39T-80	100	176	80	48	148-153	73	31
43T-80	110	147	80	40.8	125-131	53	31
47T-55	120	152	55	51	88-96	47.6	29
48T-70	120	135	70	41	108-120	45.5	30
53T-55	135	128	55	47	88-96	44.5	29
54T-64	137	115	64	38.5	95-105	38.9	30
54T-70	137	108	70	34	108-120	40	31
62T-64	155	105	64	42	98-107	33	31
64T-45	160	105	48	43	73-82	36.5	30
64T-55	160	98	55	38	85-95	36.1	30
64T-64	160	88	64	30	95-105	30.7	31
68T-55	175	85	55	34	85-95	29.2	48
68T-64	175	78	64	29	108-110	32	58
72T-45	180	92	45	40	68-76	33.1	27.6
72T-48	180	90	48	36	75-84	33.1	28
77T-48	195	81	48	34	80-85	29	28
77T-55	195	75	55	28	86-92	26.6	29
80T-48	200	72	48	33	75-84	28.7	27
90T-48	230	56	48	25	77-85	23.5	25
100T-40	250	58	40	37	66-73	21.3	28.5
110T-40	280	52	40	33	78-85	20.5	29.6
120T-34	305	45	34	30.5	52-57	18.4	30.5
140T-34	355	31	34	19.5	56-62	14.4	31
150T-31	380	36	31	29	43-47	13.1	30.5
150T-34	380	30	34	20.5	56-62	14.9	30.5
165T-31	420	31	31	22.5	52-58	12.5	28.9

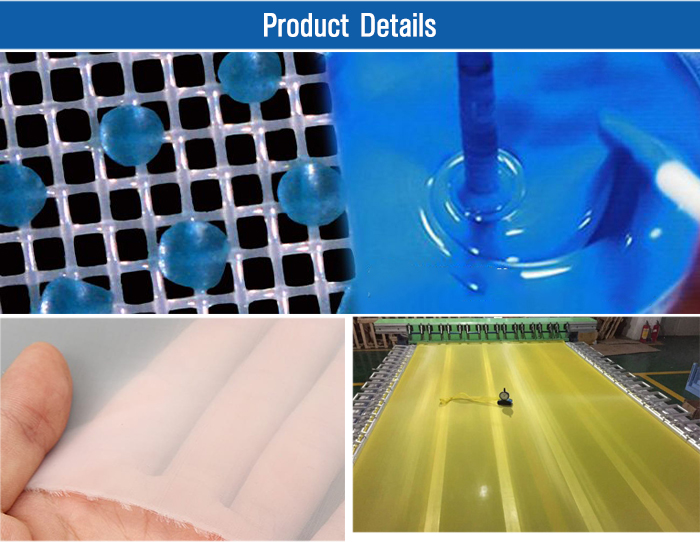

High Tension: The fracture resistance is high, and the tension value of the printing mesh is

significantly higher than that of the ordinary printing mesh.



High Stability: The tension remains very stable during the printing process, thus ensuring

the printing quality and the service life of the screen.



High abrasion resistance: High-quality fiber is used as the raw material and the surface

of the screen is specially treated to withstand high pressure and multiple frictions.

Therefore, the screen has high safety and printing resistance.

[Our Advantage]

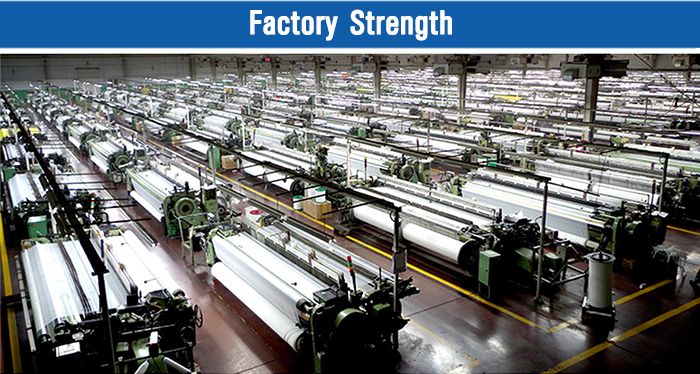

1. 126 sets of P7100 and P7150 Sulzer weaving looms  from Switzerland, as well as Germany-made

the intellectual electronic warping machine can ensure our supply ability to be 5000 meters per day.

2. For normal mesh count mesh and other products, usually, we have stocks, and goods can be shipped

out within 15 days.

3. Our production process is fully based on the high computer technology, it is accepted as the only

company capable of having TSE ( Chinese Standard Institution ) and ISO 9001:2008. 90% of our silk screen printing mesh is exported to Southeast Asia, North America, Europe and other parts of the world.

We have a good reputation in the world with high quality and competitive prices.

Direct factory customization, reduce the link, you can enjoy the factory price; factory large-scale

procurement of raw materials can control the cost very well.

[White and Yellow color mesh differences]

White mesh is the more economical of the two and is primarily seen in lower mesh counts used for less-detailed designs. Higher count mesh is usually dyed yellow because the color yellow acts as a canceling factor for UV light and prevents refraction along the mesh strands when burning your screens. This allows for a more focused and precise exposure, keeping your screens as crisp as possible.

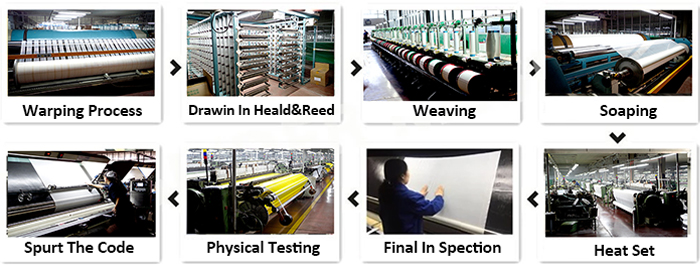

[Production Process]

Buy yarn from Jintong, Switzerland, and Japan, we inspect the yarn when they are unloaded in our factory. (tolerance, tensile strength, physics test, etc.).

After that, we put the warp wire on the beam and drew the warp wire into the heddle and reed. Then our

experienced weaver will start weaving according to orders.

The initial survey will be done after weaving. Then start heat setting treatment and physical properties

inspection, before we get tentative finished rolls(60-500 meters big rolls).

In the end, we’ll cut the small rolls(20m-50m) according to customer orders after a final inspection.

[Packing]

1. Paper tube inside, plastic bag outside, then packed in cartons.
2. Folding the mesh into the plastic bag, then pack it in cartons.



[Shipping]

1. Samples orders are usually within 3 days shipped by Courier (within DHL, TNT, FEDEX, UPS, EMS, and so on)
2. Small quantity orders usually within 3-7 days shipped by air or by sea.
3. Large quantity orders usually within 7-15 days shipped by sea.
4. The main export ports: are XINGANG, BEIJING, SHANGHAI, QIANGDAO, NINGBO, and so on.
