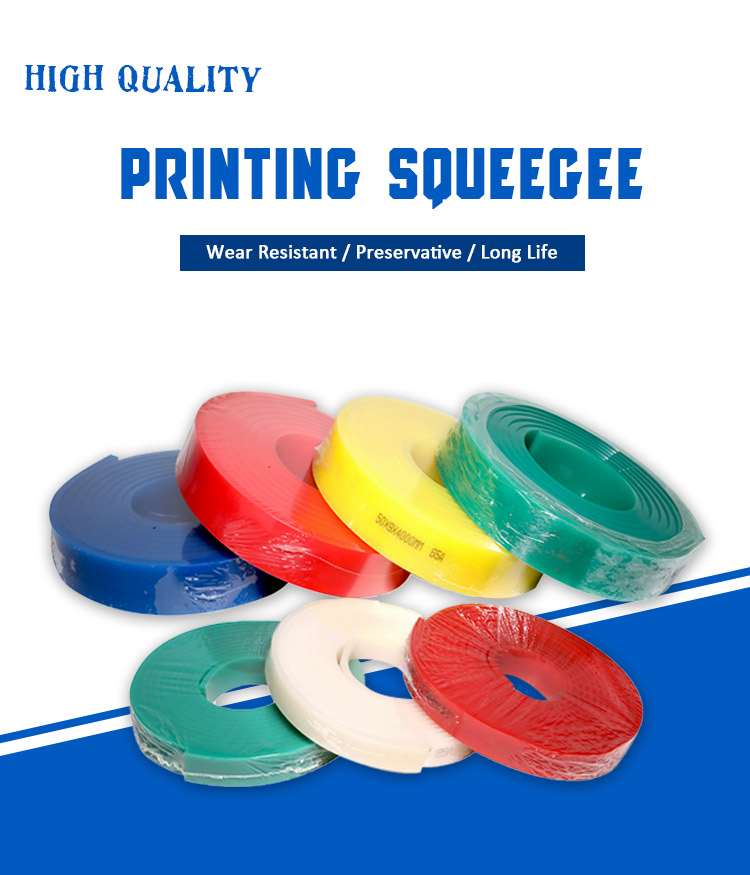

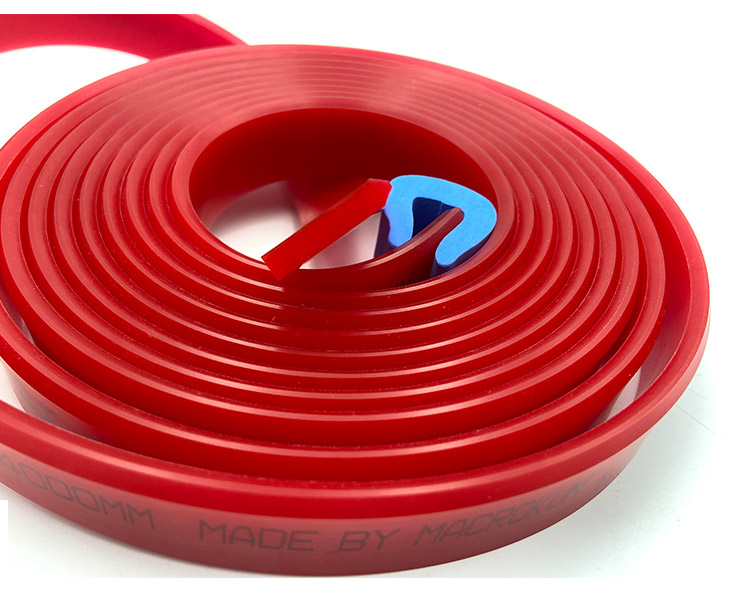

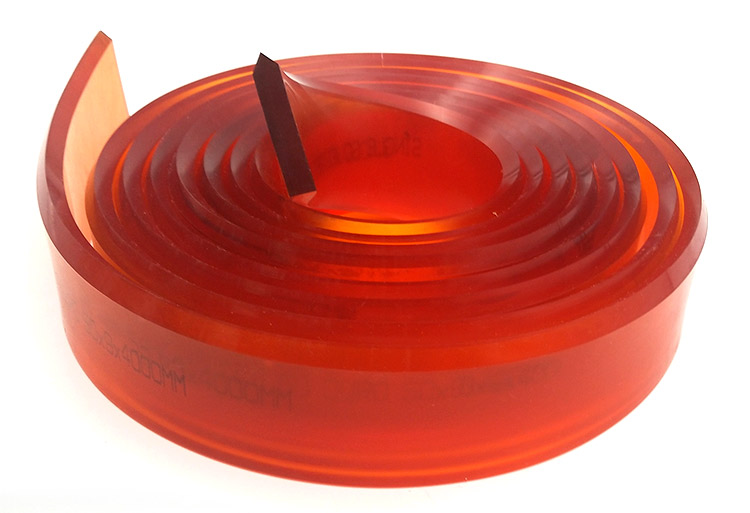

Squeegee is the glue strip used in the screen printing process. Most of them are made of PU material. According to the characteristics of the screen printing substrate, the precision requirements of the printing pattern, and the different printing methods, squeegees with different hardness and cross-sectional shapes can be selected.
| Product name: | screen printing squeegee | Brand: | MACROKUN |
| Material: | Polyurethane | Length: | 3660mm/roll,4000mm/roll, customized |
| Size: | 25*5mm, 35*7mm, 50*9mm | Color: | red, green, blue, white,
etc, customized |
| Strip hardness: | 55,60,65,70,75,80,85,90,95A | Blade shape: | flat, sharp, oblique, blunt |
| Product use: | Make glue or ink flow through the screen to contact the substrate material, Ensure that the screen is suitable for the surface of the substrate, and can remove excess glue and ink on the screen |
||
| Storage method: | After using up or not using for a long time, the blade should be cleaned with water or net water. Wash it clean and keep it in a cool place to extend the life of the tape | ||
Welcome to buy the screen printing squeegee produced by MACROKUN, our screen printing
squeegee has a variety of sizes and hardness for your choice!

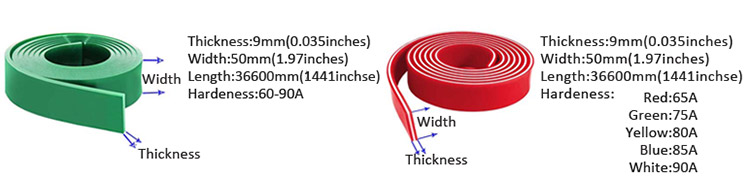

| PU100 | PU300 | PU500 | PU800 | Triple Layer | ±Tolerance | |
| Thickness | 2-20mm | ±0.3mm | ||||
| Width | 9-500mm | ±1.00mm | ||||
| Length | 10-4000mm | ±5mm | ||||
| Hardness | 55-95 Shore A | ±3A | ||||

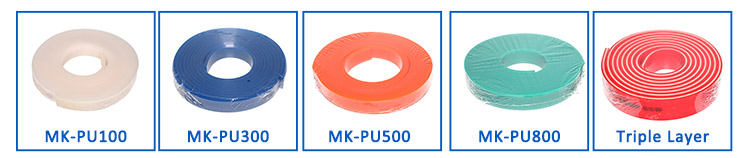

MK-PU100
Usage: Widely used in t-shirts, textile printing, etc.
Feature: Resistant to water-based inks and common solvents.
MK-PU300
Standard References : Soft 65sh A red / Medium 75shA green
Usage: Widely used in UV inks, CD/DVD, disc, glass, ceramic, package, PCB printing etc.
Feature: It is a purpose polyurethane blade with good combined resistance to chemicals and abrasion. it was developed to withstand various applications in screen printing.
MK-PU500
Standard References : Soft 65sh A red / Medium 75shA green
Usage: Widely used in PCB, Solar panels, touch screens, glass, decal paper printing, etc.
Feature: It is a special polyurethane blade with excellent combined resistance to chemicals and abrasion. It was developed to withstand the toughest applications in screen printing have a long shelf life in most environments, and sharpen well.
MK-PU800
Storage of squeegee: The squeegee needs to be put in a dry and cool warehouse for long-term storage. Newly purchased squeegees, you’d better rotate to use it, After daily use, just clean the solvent on the squeegee surface, and keep the squeegee edge upward.
Usage: Widely used in UV inks, glass, ceramic, PCB electronics printing, etc.
Feature: Raw material from Taiwan, super solvent resistant, abrasion resistant, longer service life,anti-static.

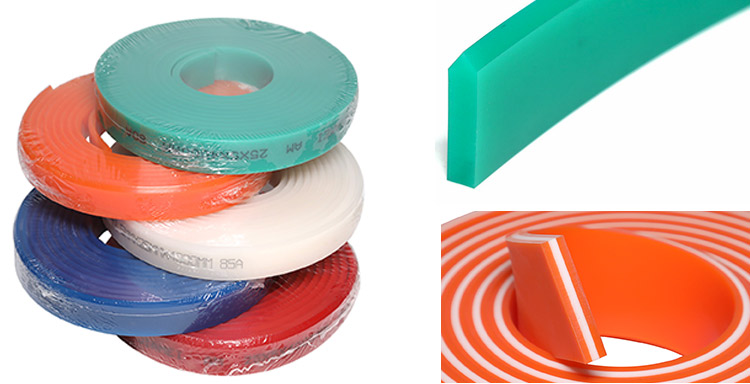

Triple Layer
Triple soft 65/90/65 shore A Red/White/Red Advantages.
Good resistance to chemicals & abrasion.
Resistance to abrasion.
Sharpens easy.
Color-coded for easy identification.
High environment stability.
Individual package and batch Applications
| Standard Hardness | |||
| Soft | 55，60,65 | Shore A | red or natural |
| Medium | 70,75 | Shore A | green or natural |
| Hard | 80,85 | Shore A | blue or natural |
| Super hard | 90,95, | Shore A | white |
| Triple medium | 75/90/75 | Shore A | green/white/green |
| Triple soft | 65/90/65 | Shore A | red/white/red |
Other hardness and colors are available on request!

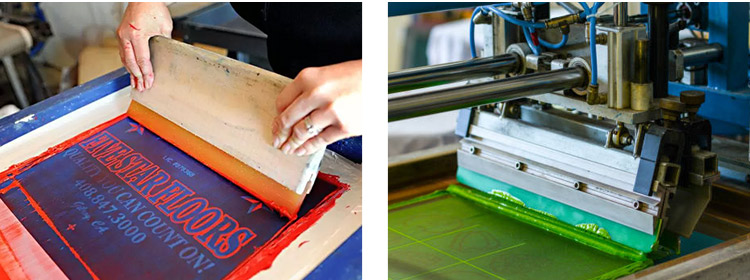

Made of special polyurethane elastomer high-quality material, suitable for all kinds of screen printing machines, such as manual screen printing machines and automatic screen printing machines.

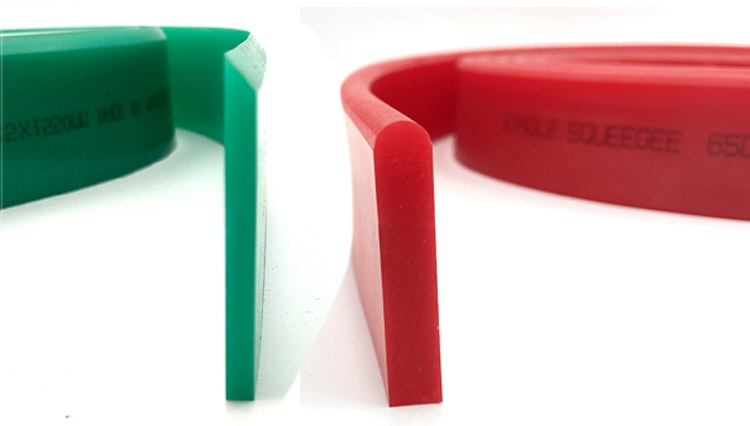

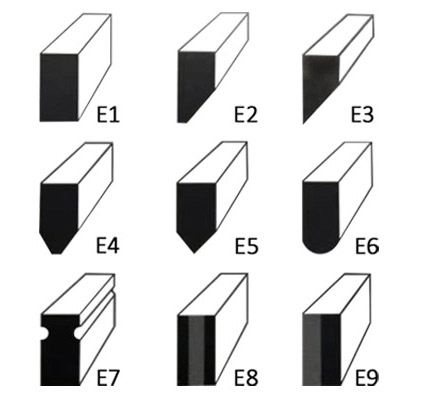

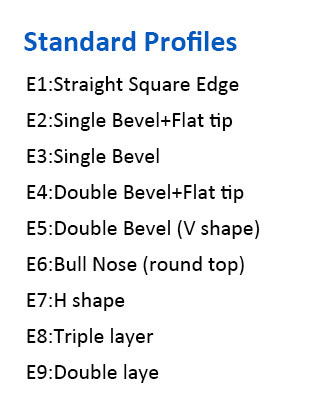

The flat-mouth squeegee has a certain adaptability and can withstand higher pressure.
The inclined squeegee has the characteristics of flat scraping and sharp scraping, and it is not easy to collapse.
The sharp-edged squeegee has good flexibility, and compliance, reduces pressure, and is suitable for printing on uneven surfaces.
The larger the degree of the strip, the harder the squeegee, and the smaller the degree, the softer the squeegee.
Product Features:
1. High abrasion and tear resistance resulting in better elasticity.
2. Excellent resistance and minimum swell to a wide range of pastes, inks, and solvents.
3. Precisely finished edge.
4. Hyper solvent resistance.
5. Has good abrasion resistance, and can be repaired with a scraper.
The screen printing squeegee is melted and cast by a centrifuge. This fully computer-controlled process is not only.
It can avoid the generation of air bubbles and small holes, and it is the only way to ensure the quality of the squeegee from beginning to end.
Consistent advanced technology. In addition, each squeegee needs to be tested and sold before leaving the factory, which effectively avoids being unusable due to the appearance of air bubbles and pinholes.
Use Suggested:
When using, try to avoid excessive pressure of the scraper on the screen, which will cause: the ink layer to be extremely thick, difficult to control, and will also wear the screen excessively. printing with proper pressure. When loading the squeegee into the handle, do not apply excessive pressure or use a thick gauge to press it in, the squeegee should take regular breaks, not continuous use.
Cleaning Method:
Wipe off excess ink with a cloth first, and then use a soft cloth dipped in a suitable solution to clean it. Do not use strong corrosive solvents. After grinding, the spatula should be completely idle before use to allow the solvent on the spatula to fully evaporate.
Grinding Method:
Common grinding methods can be used: belt type, grinding wheel type. The squeegee must be kept dry during grinding, and the squeegee after grinding should not be wiped with solvent
immediately.
Storage Method:
For long-term storage, the squeegee should be wrapped and placed flat in a dry, cool and dark room. Avoid direct light exposure, otherwise, the performance and hardness of the scraper will change.

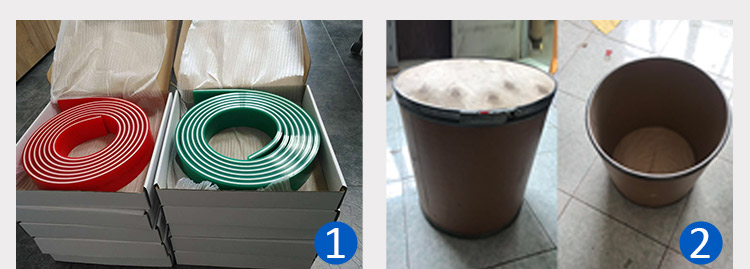

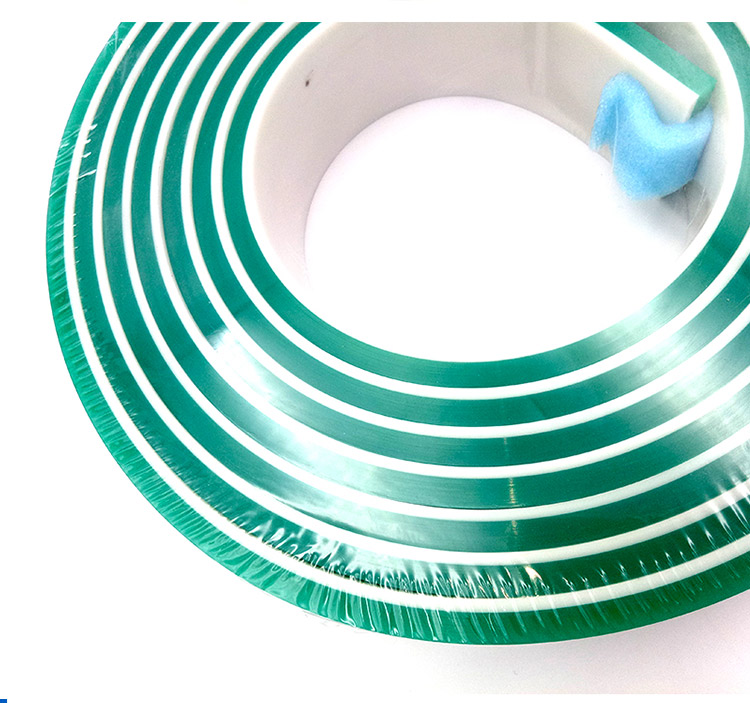

Product packaging is divided into two types:
Transport:
1. Samples orders are usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS and
so on).
2. Small quantity orders usually within 3-7 days shipped by air or by sea.
3. Large quantity orders usually within 7-15 days shipped by sea.
The main export port: is SHENZHEN.
