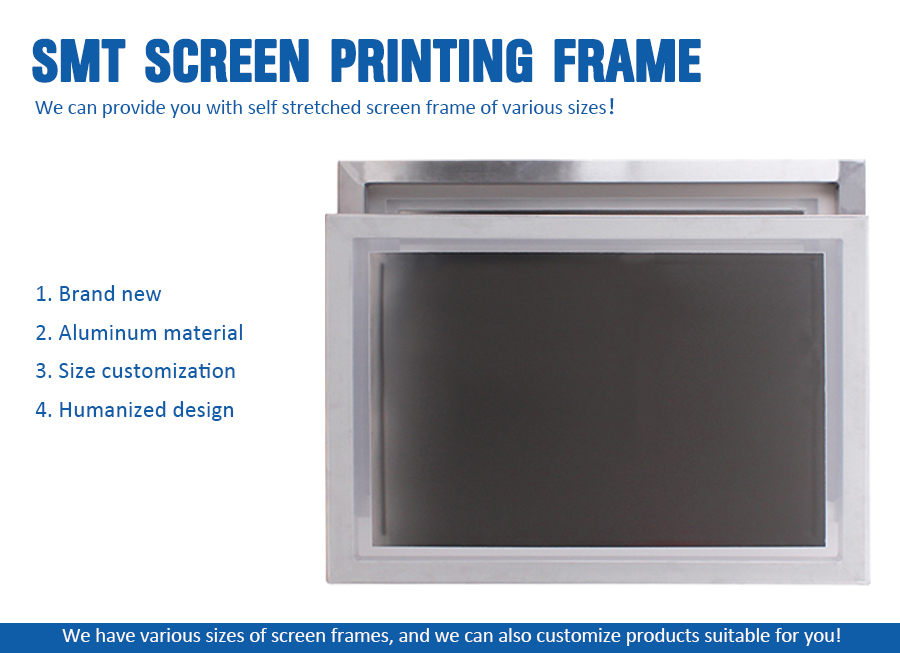

» SMT screen printing frame

Why Choose Our Products ?

1.The product is colorful and careful, and the stability is good !

2.Various specifications can be made !

3.Customer service reception before and after sale !

MACROKUN supply almost all of the common size of SMT stencil.

Normal size stencil uses unified 24T,29T,36T low elongation polyester mesh, and proprietary imported epoxy

adhesive,which is high precision,strong chemical resistance, durable and stable property When cleaned by Ultrasonic.

The uniformity of stretching tension can be controlled within ± 1N/cm.

Size Outside (O.D)	Stock Profile
550×600 mm	30×40 mm
550×650 mm	30×40 mm
15″x20″	1″x1.5″
23″x23″	0.5”x1.5″
23″x23″	1″x1.5″
29″x29″	0.5”x1.5”
29″x29″	1.5″x1.5″
29″x29°	1.575″x1.575″

Remark

Customize size available. The tolerance of the overall dimension can be     controlled within -0.5 mm The planeness can be controlled within ±0.15 mm withstand tension >40 N/CM

Surface Mount Technology (SMT) for electronic circuit.This is called surface mount or surface mount technique.A frame is a frame used to support a steel mesh (SMT formwork), made of metal, wood, or other materials.It is divided into fixed type and adjustable type.The most commonly used is the aluminum production of pneumatic mesh frame.Simply put, a thin piece of steel is cut with some holes corresponding to the solder joints of the PCB board for printing solder paste.

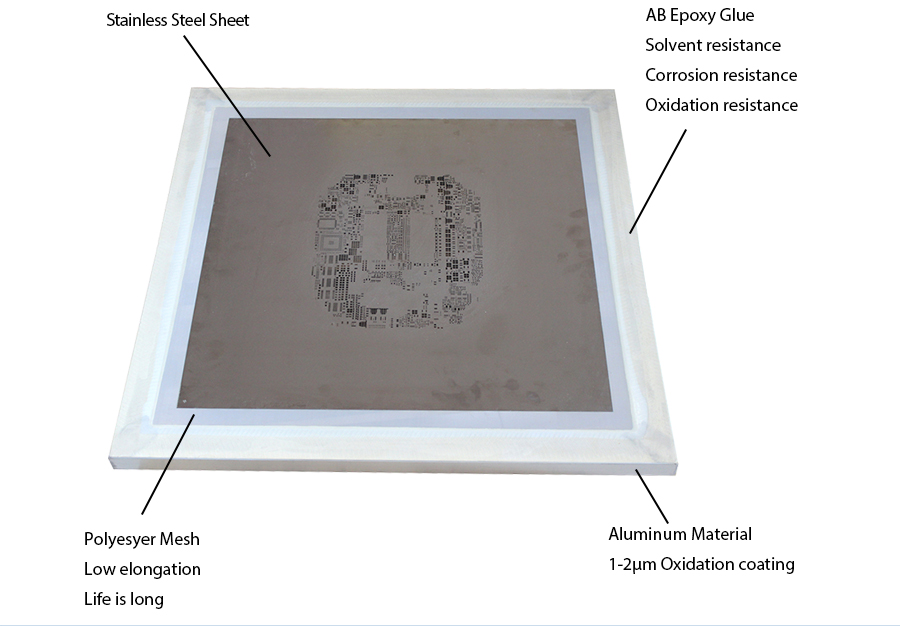

1.Use AB epoxy adhesive to resist corrosion and solvent.

2.The use of aluminum frame, light and high strength.

3.Precise data control in production, to ensure that each product can give customers the best experience in the application.

4.Professional parameters of the mesh yarn, to ensure the elasticity of the product, tensile.
