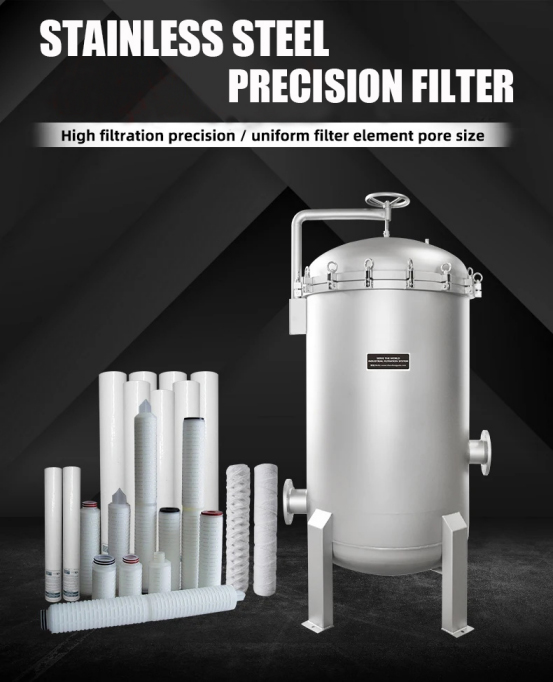

» STAINLESS STEEL CARTRIDGE FILTER HOUSING

APPLICATION OF STAINLESS STEEL CARTRIDGE FILTER HOUSING



Food and beverage: juice, soda filtration; Syrup, additive filtration; Oil filter
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Automotive: oil removal and filtration of electrophoretic paint; Filter varnish and finish
Electronic industry: coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration

>>>PRODUCT DESCRIPTION

Model	Filter element	Connection	Max. Flow (m³/h)	Working pressure(MPa)
INCE-3*10“	PP	DN25	1	0-0.6
INCE-3*20”	PP	DN25	2	0-0.6
INCE-5*10“	PP	DN25-40	3	0-0.6
INCE-5*20”	PP	DN25-40	4-6	0-0.6
INCE-5*30“	PP	DN25-40	7-8	0-0.6
INCE-5*40”	PP	DN25-40	9-10	0-0.6
INCE-7*20“	PP	DN50	6-7	0-0.6
INCE-7*30”	PP	DN50	9-11	0-0.6
INCE-7*40“	PP	DN50	11-14	0-0.6
INCE-10*40“	PP	DN50	14-18	0-0.6
INCE-12*40”	PP	DN65	16-22	0-0.6
INCE-15*40”	PP	DN65	20-28	0-0.6
INCE-20*40“	PP	DN80	28-38	0-0.6
INCE-60*40”	PP	DN100	80-100	0-0.6
INCE-70*40“	PP	DN125	100-135	0-0.6
INCE-80*40”	PP	DN125	120-155	0-0.6
INCE-100*40“	PP	DN125	150-190	0-0.6



>>>ADVANTAGES

PRECISION FILTER PERFORMANCE CHARACTERISTICS.

1.The shell of the cylinder is generally made of stainless steel.

2.Internal use of PP meltblown, wire burning, folding,titanium filter,activated carbon filter and other tubular filter elements as filter elements.

3.Select different filter elements according to different filter media and design processes to meet the requirements of effluent quality.



Surface Finish

Finish type	Mechanical polishing, electrolytic polishing.,sandblasting
Processing precision	Inner wall:0.6uminnersurfaceRa≤0.6um Outer wall:0.8umOutside surface Ra≤08umSupport filter basket:0.6umBasket 0.6um

Operating Conditions

max operating pressure	1.0MPa
max operating temperature	150℃



ROCKER ARM LIFTING RING QUICK OPENING

Industrial production standard，thickened sealing flange ring to ensure sufficient equipment strength and pipeline load bearing capacity,m16 high-strength lifting ring,rocker arm opening mechanism,easy maintenance，low cost,widely used in industrial and water treatment and filtration fields.

FILTER CORE STRUCTURE

The thickened filter element seals the middle plate,high pressure,corrosion resistance,high efficiency, low resistance,easy to replace the filter element, supports 1-200 core equipment customization,strengthens the internal support mechanism,and meets long-term

Uninterrupted high-strength production filtration.

HIGH-PERFORMANCE PRECISION FILTER

Accuracy Conversion	mesh	300	200	150	120	100	75	60	50	40	30
	um	50	75	100	125	150	200	250	300	375	500

PP cotton uses an internal thread structure, which has a great improvement in compression resistance and adsorption.Because of the three-spray process,it will not have the same problems as ordinary pp cotton, such as drawing and easy collapse.
