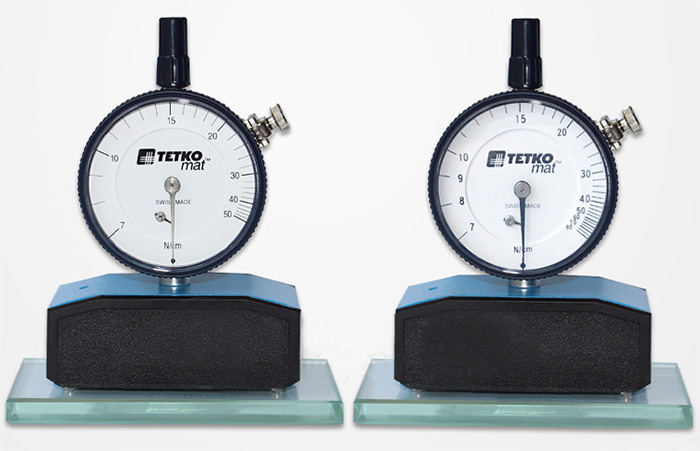

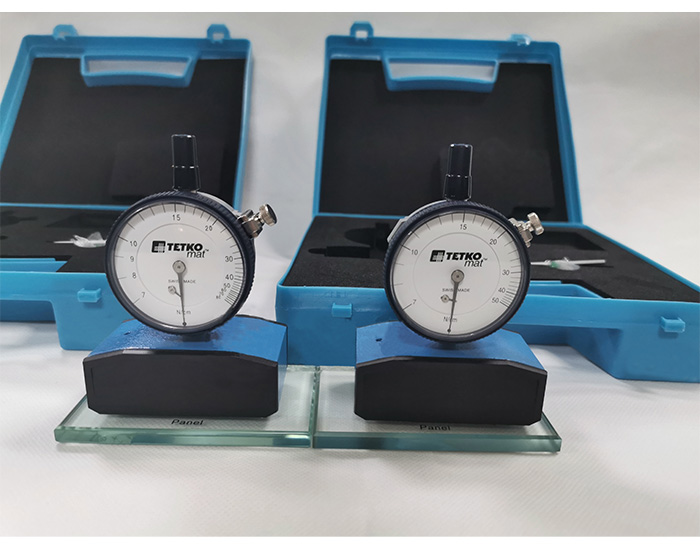

Screen Tensiometer
Model: TETKO MAT
The TETKO screen tension meter has been calibrated to zero before leaving the factory.
Users do not need to adjust it by themselves.
The tension of the net is expressed in N / cm, which indicates how much the tensile force of
the mesh yarn per cm width is usually expressed in N-Newton or Kg-kg.
Newton shows the actual meaning of the tensiometer; the reading display method:
The first reading of the tensiometer reading is incorrect. The second reading of the
tensiometer is normal and the tensiometer should be flicked. Mesh next to it.
PRODUCT PARAMETERS
| Measuring Principle: | The instrument for measuring screen tension with a precision mechanical method | ||
| Display Error: | The accuracy error is ± 5% | ||
| Measuring Range: | 7-50N/cm 7-80N/cm | ||
| Package Size: | 33*27*12cm | Accessories: | Standard calibration glass |
| Net Size: | 31*25*10cm | Net Weight: | About 1500 g |
| Units Of Measurement: | N/cm | Total Weight: | About 2000g |
| Note: | Shockproof, put it on its side after use | ||
| Type of mesh | Ty pes of printing | Tension IN / CM |
| Ultra high-tension mesh | The circuit board and measuring scale | 16-20 |
| High-strength mesh | Multi-color four-color overprinting machine printing |
16-20 |
| High-precision ultrafine mesh | High-precision multilayer circuit printing |
25-30 |
| High-precision polyester mesh standard monofilament |
Multi-color and four-color overprint |
8-12 |
| Ordinary polyester mesh standard monofilament |
Flat objects | 8-12 |
OUR PRODUCT
Screen tension meter
Common phenomena are printing ghosting, inaccurate color registration, ink smearing, etc.,
which is the expression of uneven tension.
Therefore, the tensiometer is an important tool for you to make color plates, precision plates,
and dot plates.
The tensiometer is used to measure the tension of the stretched mesh and is an indispensable
tension measurer in the stretched net process.
Selecting a high-precision tensioner is the key to plate making and overprinting.
The tensiometer is easy to operate and easy to read. The error is small and the accuracy is high.
The tensiometer is an instrument that measures the amount of mutual traction
between the inside of the wire mesh and the fixed wire mesh contact when the wire mesh is
under tension. The unit for measuring tension is expressed in Newtons/cm.
Tension can also be expressed in relative values.
The centimeter tensiometer is a kind of relative tension, which is calculated by the value of the depth of the tensiometer to sink the wire mesh (mm). The tension value can be obtained
directly from the indicator panel or indirectly from the control panel. get. Tensiometer is an
important testing instrument to check the quality of the screen printing plate. In order to ensure the tension required by the plate making, the tension meter should be used during or after the stretching.
Reading display mode: the first reading of the tensiometer reading pointer is incorrect,
the second reading of the tensiometer rotation is normal, and the net yarn beside the
tensiometer must be shaken.

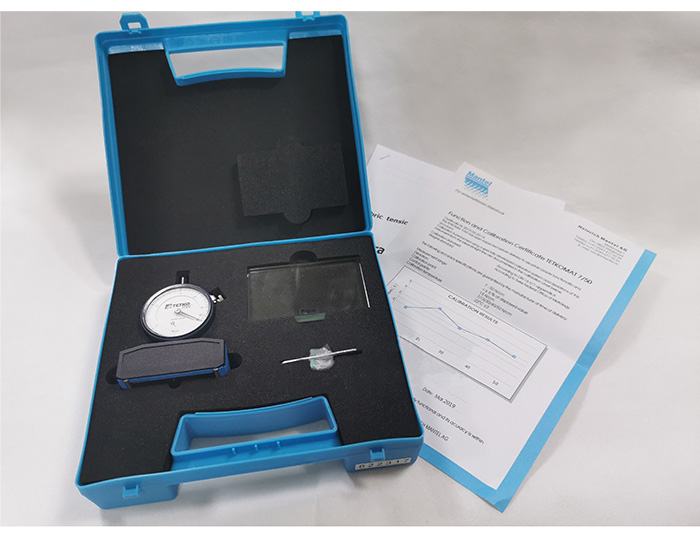

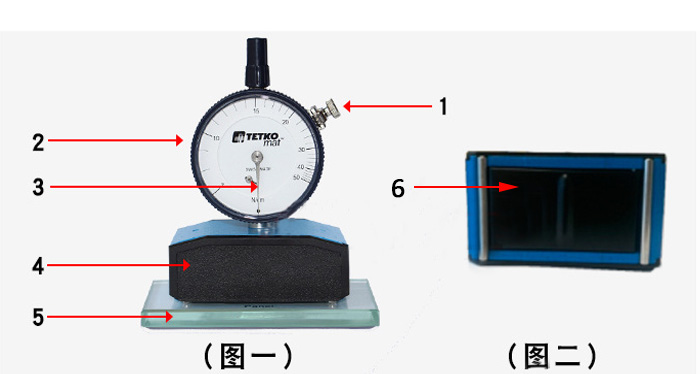

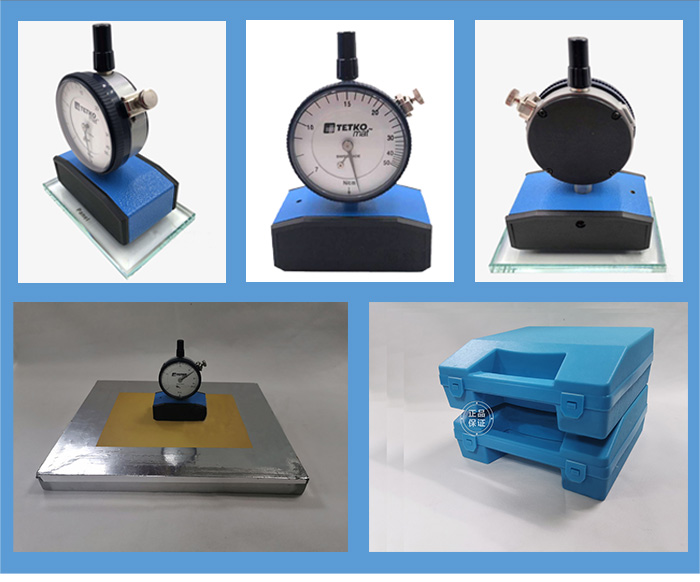

Tensiometer Accessories
3. 0 N / cm (zero point)
Measurement Methods And Steps
Zero Adjustment

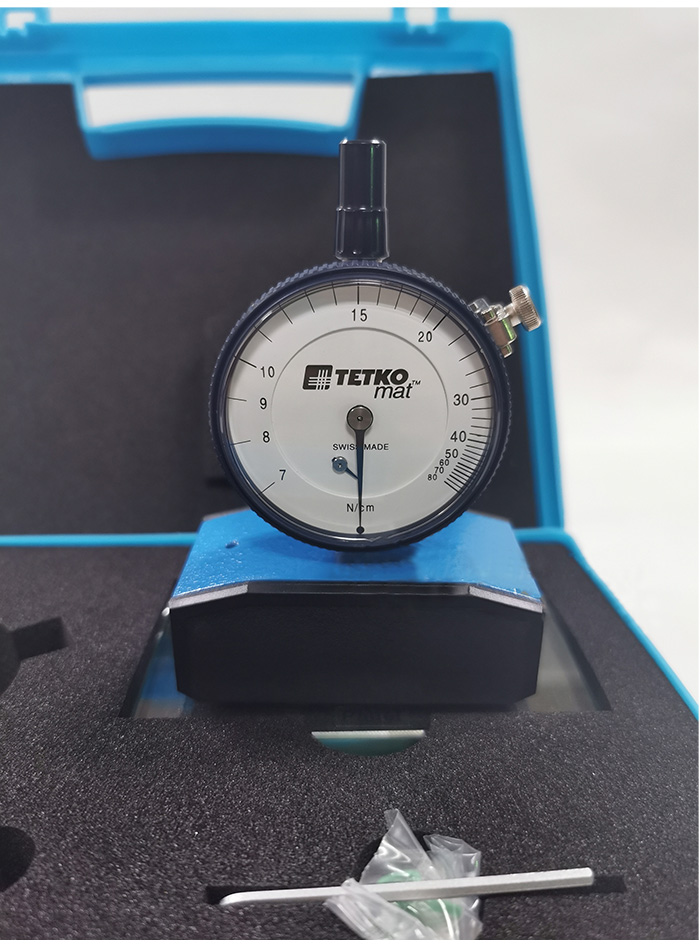

Remove the tensiometer from the box, place it on the glass calibration block, and then turn the fixing screw counterclockwise to allow the zeroing dial to rotate. Rotate the zero plate to zero and confirm.
Measuring

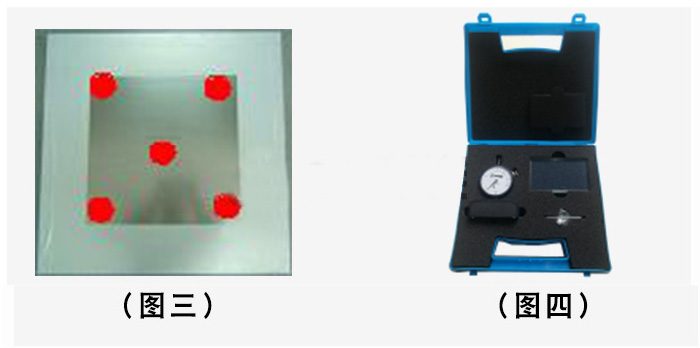

Flip the mesh and place it horizontally (PCB contact side up) place the tensiometer at the four corners and center of the screen, check the tension value at each point, and record the minimum value. Check whether the screen tension test value is within the allowable range, if the measured value does not meet the standard, please feedback to the engineer for processing.
After the measurement, put the tensiometer back into the box in time,
and then put it back on the knife holder.
