Food and beverage: juice, soda filtration; Syrup, additive filtration; Oil filter.
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration.
Automotive: Oil removal and filtration of electrophoretic paint;Filter varnish and finish.
Electronic industry: coolant filtration.
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration.
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products.
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration.
>>>PRODUCT DESCRIPTION<<<

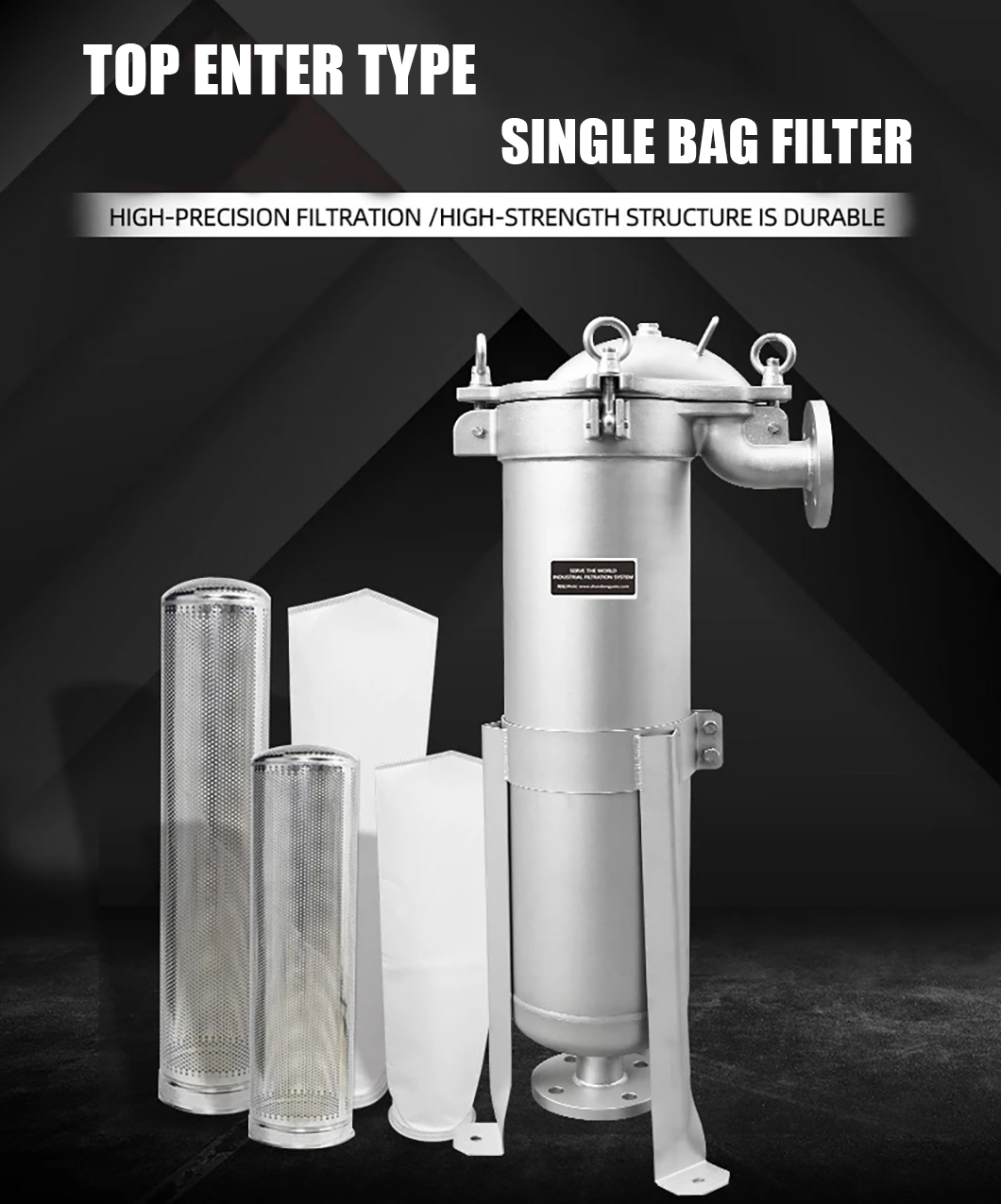

SINGLE BAG FILTER WITH OPTIMAL STRUCTURE
The top-loading single bag filter with optimized structure is the best single bag filter. It has an absolute sealing effect and is suitable for high-precision filtration. It has a high-strength structure and extremely high safety. It is suitable for various harsh working conditions and is extremely durable.
MULTIPLESPECIFICATIONS MEET DIFFERENT APPLICATION SCENARIOS
| Model: | INCE-1P1S |
| Filter bag#: | 2# 180*810mm |
| Filter bag Qty: | 1 pc |
| Filtration area(m2): | 1.25 |
| Max. Flow (m³/h): | 20-30 |
| Design Pressure: | 150PSI |
| Working pressure(MPa): | 1.6 |
>>>ADVANTAGES<<
UNIQUE TIGHT SEALING DEVICE
Industrial production standard, m16 high-strength lifting ring, loosen the nut to open.
INGLE BAG FILTER OPERATES EFFICIENTLY
Economical and applicable – efficient and high precision
THE CORE OF THE BAG FILTER SYSTEM
Absolute sealing design, the shell sealing and filter bag sealing actions are completed at the same time, which can form a 360° seal with the filter bag, suitable for high precision, higher pressure, and improved filtration effect.
FILTER EQUIPMENT ARCHITECTURE
One-piece cast top cover and lower flange, compact structure,smooth flow pipe and low resistance.Applicable to various filtering environments and working conditions.
FILTER EQUIPMENT SELECTION
The cylinders of different sizes and thicknesses and the parallel connection of two units can be customized according to the customer’s site and usage conditions to meet customer filtration needs.
