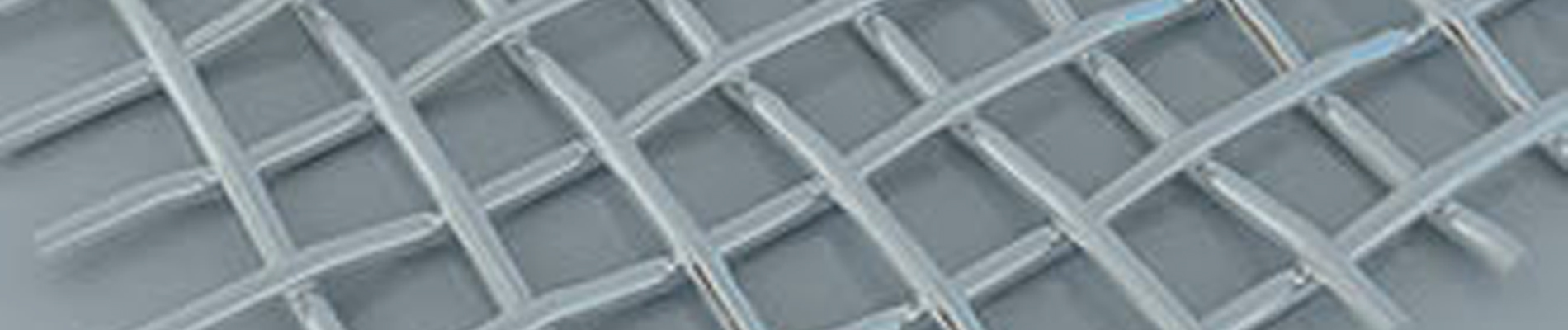

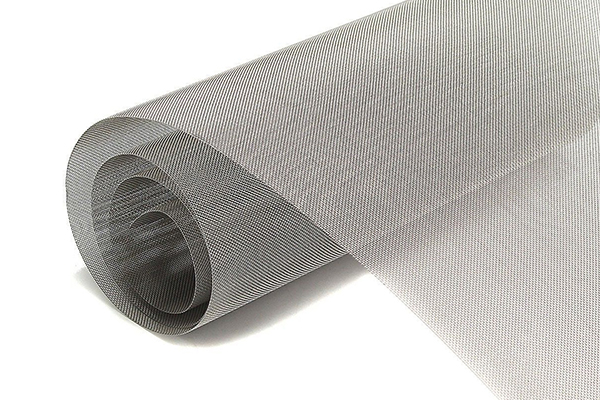

twill weave Stainless Steel Wire Mesh

The Twill Weave stainless steel filter has the characteristics of stable and fine filtration performance. Various types of stainless steel mesh products can be designed and manufactured according to user needs.

Name Stainless steel wire mesh; Plain weave stainless steel wire mesh;
Material  SUS302, 304, 304L, 316, 316L, etc.
Specifications  1×1-635×635 mesh (0.02-23mm)
Width  1 meter, 1.22 meters, can be customized
Roll length  30 meters, Can be customized
Weaving method  Twill weave; Mat twill weave

Advantage:
1. The filtering effect is very stable: High-quality raw materials are selected in the process of production, so that it is not easily deformed during use;
2. High strength: high-quality materials have high pressure resistance and can withstand large working strength;
3. the cleaning is simple: the single layer of filter material has the characteristics of simple cleaning, especially suitable for backwashing;
4. with high temperature resistance: can withstand high temperatures of about 480°C;
5. with corrosion resistance: stainless steel raw materials themselves have high corrosion resistance and wear resistance;
6. easy to process: high-quality materials, whether it is cutting, bending, stretching, welding and other procedures can be done very well.
Use:
For screening and filtration under acid and alkali conditions.
The petroleum industry is used as a mud net, a chemical fiber industry as a sieve screen, and an electroplating industry as a pickling net. Used in the industrial and construction industries to screen sand and filter liquids and gases.

Related Posts

No related posts.

  1. Dutch Weave Stainless Steel Wire Mesh
  2. Nylon Filter Mesh

TWILL WEAVE STAINLESS STEEL MESH

Mesh/Inch Wire Diameter Aperture Open Area % Weight(LB) /100 Square Foot Request a Quote
Inch MM Inch MM
1 * 1 0.08 2.03 0.92 23.37 84.6 41.1
2 * 2 0.063 1.6 0.437 11.1 76.4 51.2
3 * 3 0.054 1.37 0.279 7.09 70.1 56.7
4 * 4 0.063 1.6 0.187 4.75 56 104.8
4 * 4 0.047 1.19 0.203 5.16 65.9 57.6
5 * 5 0.041 1.04 0.159 4.04 63.2 54.9
6 * 6 0.035 0.89 0.132 3.35 62.7 48.1
8 * 8 0.028 0.71 0.097 2.46 60.2 41.1
10 * 10 0.025 0.64 0.075 1.91 56.3 41.2
10 * 10 0.02 0.51 0.08 2.03 64 26.1
12 * 12 0.023 0.584 0.06 1.52 51.8 42.2
12 * 12 0.02 0.508 0.063 1.6 57.2 31.6
14 * 14 0.023 0.584 0.048 1.22 45.2 49.8
14 * 14 0.02 0.508 0.051 1.3 51 37.2
16 * 16 0.018 0.457 0.0445 1.13 50.7 34.5
18 * 18 0.017 0.432 0.0386 0.98 48.3 34.8
20 * 20 0.02 0.508 0.03 0.76 36 55.2
20 * 20 0.016 0.406 0.034 0.86 46.2 34.4
24 * 24 0.014 0.356 0.0277 0.7 44.2 31.8
30 * 30 0.013 0.33 0.0203 0.52 37.1 34.8
30 * 30 0.012 0.305 0.0213 0.54 40.8 29.4
30 * 30 0.009 0.229 0.0243 0.62 53.1 16.1
35 * 35 0.011 0.279 0.0176 0.45 37.9 16.1
40 * 40 0.01 0.254 0.015 0.38 36 27.6
50 * 50 0.009 0.229 0.011 0.28 30.3 28.4
50 * 50 0.008 0.203 0.012 0.31 36 22.1
60 * 60 0.0075 0.191 0.0092 0.23 30.5 23.7
60 * 60 0.007 0.178 0.0097 0.25 33.9 20.4
70 * 70 0.0065 0.165 0.0078 0.2 29.8 20.8
80 * 80 0.0065 0.165 0.006 0.15 23 23.2
80 * 80 0.0055 0.14 0.007 0.18 31.4 16.9
90 * 90 0.005 0.127 0.0061 0.16 30.1 15.8
100 * 100 0.0045 0.114 0.0055 0.14 30.3 14.2
100 * 100 0.004 0.102 0.006 0.15 36 11
100 * 100 0.0035 0.089 0.0065 0.17 42.3 8.3
110 * 110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120 * 120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150 * 150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160 * 160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180 * 180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200 * 200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250 * 250 0.0016 0.0406 0.0024 0.061 36 4.4
270 * 270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300 * 300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325 * 325 0.0014 0.0356 0.0017 0.0432 30 4.4
400 * 400 0.001 0.0254 0.0015 0.37 36 3.3
500 * 500 0.001 0.0254 0.001 0.0254 25 3.8
635 * 635 0.0008 0.0203 0.0008 0.0203 25 2.63
