03-20-20

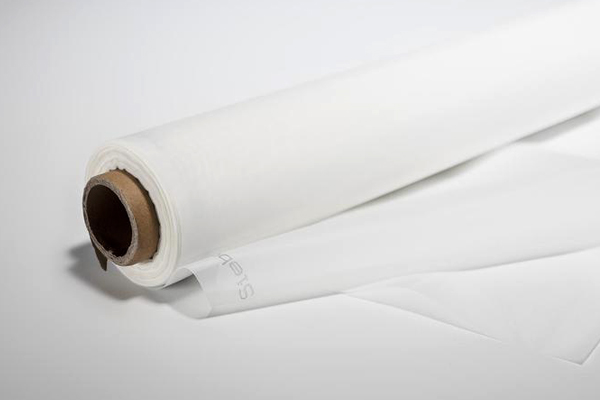

» XXX Series Screening milling Mesh

XXX Series Screening milling Mesh is a kind of auxiliary screening material specially used in food screening and flour making industry in the powder cleaning and fine grinding stage.

Material Food grade nylon PA6 (i.e. nylon, polyamide) or polyester (i.e. polyester, PET).
Specification 3XXX-13XXX, 300-90 um Aperture.
Weaving Type Plain weave
Width 105 cm, 115 cm, 136 cm, 158 cm, etc.,; Can be customized.
Product Form Roll mesh fabric.
Roll length 30-80 meters; Can be customized.

Main applications: Food processing screening filter; Plansifter in flour milling; Single and double bin flat screen; Aluminium alloy screen; Grinder screen; Powder cleaner screen; Vibration screen; Sieve bone; Press filter cloth; Starch filter cloth; etc.
Advantages: Uniform and stable meshes; Strong and efficient filter result; Food grade materials; Complete specifications; High efficiency with long working life.

XXX SERIES SCREENING MILLING MESH

Specification Mesh opening(um) Thread diameter (um) Thickness(cm) Mesh Count Open Area(%) Request a Quote
3xxx 301 140 22.7 57.6 47
4xxx 280 140 23.8 60.5 44
5xxx 257 120 26.5 67.3 47
6xxx 213 120 30 76.2 41
7xxx 203 120 31 78.74 39
8xxx 182 100 35.5 90.17 42
8.5xxx 163 100 38 96.52 38
9xxx 154 90 41 104.14 40
9.5xxx 143 90 43 109.22 38
10xxx 133 80 47 119.38 39
10.5xxx 124 80 49 124.46 37
11xxx 120 80 50 127 36
12xxx 112 70 55 139.7 38
12.5xxx 105 70 57 144.78 36
13xxx 99 70 59 149.86 34
14xxx 97 70 60 152.4 34
15xxx 92 60 66 167.64 36
16xxx 95 50 69 175.26 43
17xxx 91 50 71 180.34 42

    Get Best Quote
